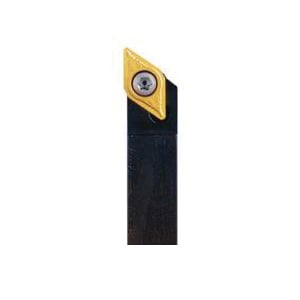

Seco 00042846 Indexable Turning Tool Holder, ANSI Code: SDACR0808K07, SDAC Tool Holder, DC..0702.. Insert, Right Hand Cutting, 8 mm W Square Shank, 90 deg Lead Angle, Neutral Rake, 125 mm OAL


Description

Seco Indexable Turning Tool Holder, SDAC Tool Holder, 125 mm Overall Length, Square Shank, 8 mm W Shank, Insert Compatibility: DC..0702.., 2 Insert Seat, Right Hand Cutting, 6.35 mm Inscribed Circle, 8.7 mm Back of Bar to Cutting Edge, 90 deg Lead Angle, 13 mm Head Length, ANSI Code: SDACR0808K07, Neutral Rake, Steel

This wide offering of easily applicable shank and boring bar toolholders adds another level of reliability and productivity to lathe machining. The range of ISO and ANSI toolholders accommodates a comprehensive range of insert types, shapes and sizes, also allowing choice of several leading clamping methods.

Specifications

ANSI Code SDACR0808K07
Back of Bar to Cutting Edge 8.7 mm
Cutting Direction Right Hand
Head Length 13 mm
Inscribed Circle 6.35 mm
Insert Compatibility DC..0702..
Insert Seat Size 2
Lead Angle 90 deg
Material Steel
Overall Length 125 mm
Rake Neutral
Shank Size 8 mm W
Shank Type Square
Tool Holder Style SDAC

Country of Origin: India
