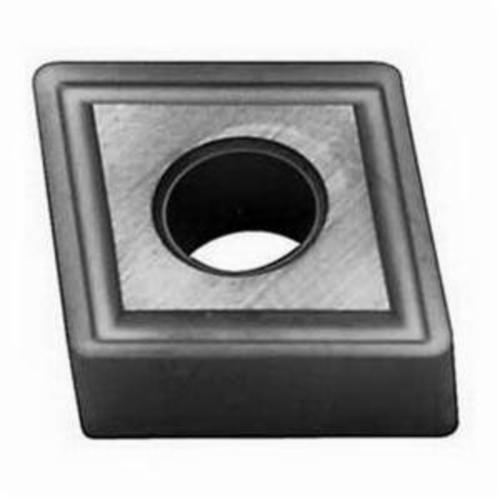

Seco 00041461 Turning Insert, ANSI Code: CNMP642-M1 883, CNMG Insert, Material Grade: S, 190608 Insert, Diamond Shape, 19 Seat, Negative Rake, Neutral Cutting, For Use On Super Alloys and Titanium, Carbide, Manufacturer's Grade: 883


Description

Seco Turning Insert, CNMG Insert, 190608 Insert, Diamond, 12 mm Maximum Depth of Cut, 19.05 mm Inscribed Circle, 6.35 mm Thickness, 19 Seat, Negative Rake, M1 Chipbreaker, 0.8 mm Corner Radius, 7.92 mm Hole Dia, Manufacturer's Grade: 883, ANSI Code: CNMP642-M1 883, ISO Code: CNMG190608-M1 883, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: S, For Use On: Super Alloys and Titanium

Specifications

ANSI Code CNMP642-M1 883
Chipbreaker M1
Corner Radius 0.8 mm
Cutting Direction Neutral
Finish Uncoated
For Use On Super Alloys and Titanium
Hole Diameter 7.92 mm
Included Angle 80 deg
Inscribed Circle 19.05 mm
Insert Size 190608
Insert Style CNMG
ISO Code CNMG190608-M1 883
Manufacturer's Grade 883
Material Carbide
Material Grade S
Maximum Depth of Cut 12 mm
Rake Negative
Relief Angle 0 deg
Seat Size 19
Shape Diamond
Thickness 6.35 mm

Country of Origin: India

Application:
Medium Applications
