Seco 41268 Perfomax™ SD503 Indexable Insert Drill Kit, 1 in Drill, 1.643 in Modular Connection, 1-1/4 in Dia Shank, 3XD Drill Depth by Dia Ratio, SPGX/SCGX Insert, 7.128 in OAL, 3 in D Max Drill


Description

Seco Indexable Insert Drill Kit, Series: Perfomax™ SD503, 1 in Drill, 1-1/4 in Shank Dia, 2-3/4 in Shank Length, ISO 9766 Shank, 1.643 in Modular Connection Size, SPGX/SCGX Insert, 3 in Maximum Drill Depth, 7.128 in Overall Length, 1 in Dia, 3XD Drill Depth by Dia Ratio, Insert Compatibility: SPGX0703-C1 Center, SCGX070308-P2 DP2000D Peripheral, 3.197 in Flute Length, Yes Through Coolant (Yes/No)

Perfomax™ is a long standing, proven range of indexable insert drills that offers an economical solution when it comes to productively drilling holes. Reliable and trustworthy, the strong, square inserts each offer four cutting edges. They can be used with most modern insert grades and coatings. The drill body design features a unique chip flute design, through coolant holes on all sizes and a low friction coating to optimize chip evacuation. The Perfomax™ drill body design is strong and sturdy, capable of handling the highest productivity and offers strong performance in unstable applications.

Specifications

Diameter 1 in
Drill Depth by Diameter Ratio 3XD
Drill Size 1 in
Flute Length 3.197 in
Insert Compatibility SPGX0703-C1 Center, SCGX070308-P2 DP2000D Peripheral
Insert Style SPGX/SCGX
Maximum Drill Depth 3 in
Modular Connection Size 1.643 in
Overall Length 7.128 in
Series Perfomax™ SD503
Shank Diameter 1-1/4 in
Shank Length 2-3/4 in
Shank Type ISO 9766
Through Coolant (Yes/No) Yes

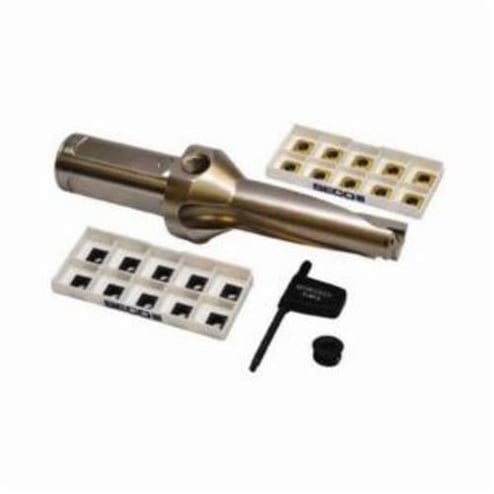

Includes: (10) SPGX0703-C1 T400D Center Insert, (10) SCGX070308-P2 DP2000D Peripheral Insert and (1) SD503-1000-300-1250R7-C Drill Body

Country of Origin: United States

Features

  • Effective chip control for long chipping ductile materials
  • Fast and efficient chip evacuation
  • Higher cutting parameters for increased drilling output
  • Longer tool life gives reduced tool cost
  • Exceptional process predictability and reliability
  • Better hole tolerance
