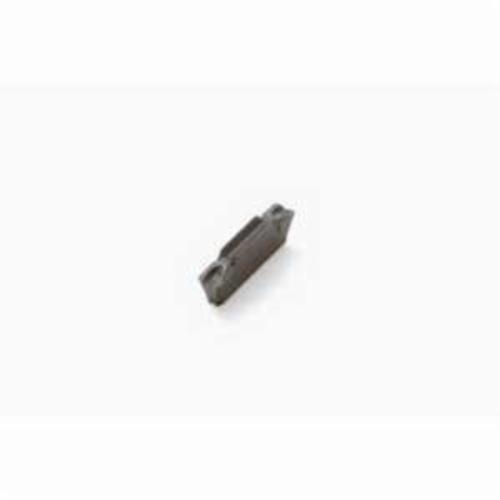

Seco 02625469 MDT Double End Turning Insert, ANSI Code: LCMF160604-0600-MC TGP25, LCMF Insert, Material Grade: P, 1606 Insert, Rectangle Shape, 16 Seat, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TGP25


Description

Seco Turning Insert, Double End, Series: MDT, LCMF Insert, 1606 Insert, Rectangle Shape, 4.5 mm Thickness, 6 mm Width, 15.9 mm Length, 16 Seat, MC Chipbreaker, 0.4 mm Corner Radius, Manufacturer's Grade: TGP25, ANSI Code: LCMF160604-0600-MC TGP25, ISO Code: LCMF160604-0600-MC TGP25, 7 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

Specifications

ANSI Code LCMF160604-0600-MC TGP25
Chipbreaker MC
Corner Radius 0.4 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Steel
Insert Size 1606
Insert Style LCMF
ISO Code LCMF160604-0600-MC TGP25
Length 15.9 mm
Manufacturer's Grade TGP25
Material Carbide
Material Grade P
Relief Angle 7 deg
Seat Size 16
Series MDT
Shape Rectangle
Thickness 4.5 mm
Type Double End
Width 6 mm

Country of Origin: India

Application:
For medium cut-off, parting-off tubes, small diameter workpieces and deep grooving
