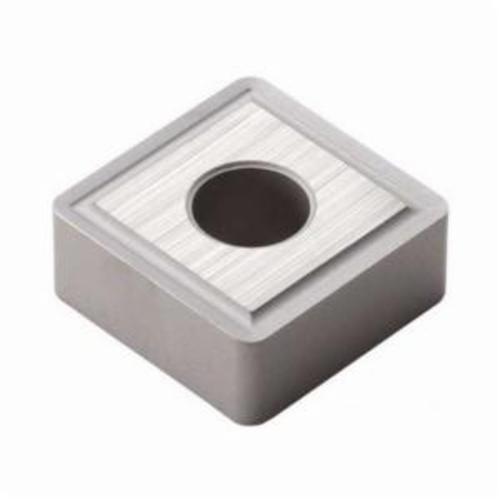

Seco 00040583 Turning Insert, ANSI Code: SNMP432-M1 883, SNMG Insert, Material Grade: S, 120408 Insert, Squared Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Super Alloys and Titanium, Carbide, Manufacturer's Grade: 883


Description

Seco Turning Insert, SNMG Insert, 120408 Insert, Squared, 5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12.7 mm Width, 12.7 mm Length, 12 Seat, Negative Rake, M1 Chipbreaker, 0.8 mm Corner Radius, 5.15 mm Hole Dia, Manufacturer's Grade: 883, ANSI Code: SNMP432-M1 883, ISO Code: SNMG120408-M1 883, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: S, For Use On: Super Alloys and Titanium

Specifications

ANSI Code SNMP432-M1 883
Chipbreaker M1
Corner Radius 0.8 mm
Cutting Direction Neutral
Finish Uncoated
For Use On Super Alloys and Titanium
Hole Diameter 5.15 mm
Included Angle 90 deg
Inscribed Circle 12.7 mm
Insert Size 120408
Insert Style SNMG
ISO Code SNMG120408-M1 883
Length 12.7 mm
Manufacturer's Grade 883
Material Carbide
Material Grade S
Maximum Depth of Cut 5 mm
Rake Negative
Relief Angle 0 deg
Seat Size 12
Shape Squared
Thickness 4.76 mm
Width 12.7 mm

Country of Origin: India

Application:
Medium Applications
