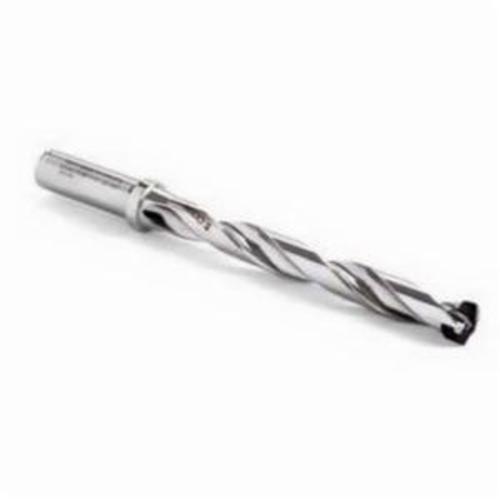

Seco 02623642 Crownloc® Plus Right Hand Exchangeable Tip Drill, 14 to 14.99 mm Drill, SD400 Insert, 7.539 in OAL, 8XD Drill Depth by Dia Ratio, 5/8 in Dia Shank, SD408 Toolholder
Seco 02623642 Crownloc® Plus Right Hand Exchangeable Tip Drill, 14 to 14.99 mm Drill, SD400 Insert, 7.539 in OAL, 8XD Drill Depth by Dia Ratio, 5/8 in Dia Shank, SD408 Toolholder
SKU: SECO 40314
Manufacturer Part Number: 02623642
Brand: Seco
Description
Seco Exchangeable Tip Drill, Right Hand, Series: Crownloc® Plus, 14 to 14.99 mm Drill, ISO 9766/Weldon Shank, 5/8 in Shank Diameter, 1.89 in Shank Length, 5.098 in Flute Length, 7.539 in Overall Length, SD408 Toolholder, 140 deg Point, 120 mm Maximum Drill Depth, 8XD Drill Depth by Diameter Ratio, SD400 Insert, Yes Through Coolant
Crownloc® Plus is a new generation of Seco drills with exchangeable crowns. Featuring a new geometry, coating and locking interface, Crownloc® Plus improves chip evacuation and wear resistance in a variety of materials. Crownloc® Plus features a strong drill body design, high-strength locking interface with deep and wide flutes and polished body. The drill's crowns have a new optimized geometry for improved chip formation and enhanced entering capability. The combination of a TiAlN coating, low-friction TiN coating on the exchangeable head and 10% micrograin substrate serve to increase toughness and wear resistance, while reducing the potential for edge build up. Crownloc® Plus provides you with high productivity, excellent chip evacuation, flexibility and easy handling. These lead to increased output, higher process security, reduction of tool inventory and elimination of regrinding costs.
Specifications
| Drill Depth by Diameter Ratio | 8XD |
| Drill Size | 14 to 14.99 mm |
| Flute Length | 5.098 in |
| Insert Style | SD400 |
| Maximum Drill Depth | 120 mm |
| Overall Length | 7.539 in |
| Point Angle | 140 deg |
| Series | Crownloc® Plus |
| Shank Diameter | 5/8 in |
| Shank Length | 1.89 in |
| Shank Type | ISO 9766/Weldon |
| Through Coolant (Yes/No) | Yes |
| Toolholder Type | SD408 |
| Type | Right Hand |
Country of Origin: Sweden
Standards and Approvals: ISO 5414, DIN 60880, DIN 1835B
Features
- Exchangeable carbide tips
- Geometries for different workpiece materials
- No regrinding
