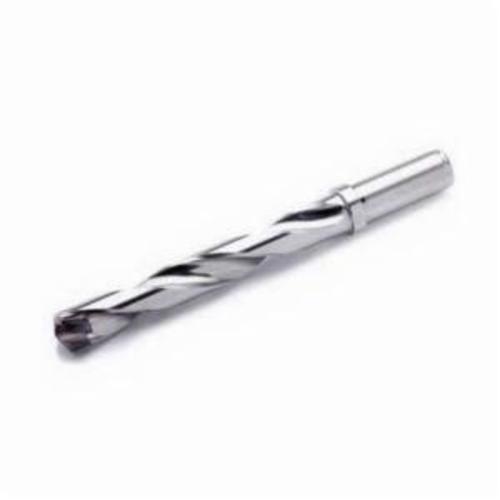

Seco 02623578 Crownloc® Plus Right Hand Exchangeable Tip Drill, 19 to 19.99 mm Drill, SD400 Insert, 182 mm OAL, 5XD Drill Depth by Dia Ratio, 20 mm Dia Shank, SD405 Toolholder


Description

Seco Exchangeable Tip Drill, Right Hand, Series: DH423, 19 to 19.99 mm Drill, Cylindrical Shank, 20 mm Shank Dia, 50 mm Shank Length, 113 mm Flute Length, 182 mm Overall Length, SD405 Toolholder Type, 140 deg Point, 100 mm Maximum Drill Depth, 5XD Drill Depth by Dia Ratio, SD400 Insert, Yes Through Coolant (Yes/No)

Crownloc® Plus is a new generation of Seco drills with exchangeable crowns. Featuring a new geometry, coating and locking interface, Crownloc® Plus improves chip evacuation and wear resistance in a variety of materials. Crownloc® Plus features a strong drill body design, high-strength locking interface with deep and wide flutes and polished body. The drill's crowns have a new optimized geometry for improved chip formation and enhanced entering capability. The combination of a TiAlN coating, low-friction TiN coating on the exchangeable head and 10% micrograin substrate serve to increase toughness and wear resistance, while reducing the potential for edge build up. Crownloc® Plus provides you with high productivity, excellent chip evacuation, flexibility and easy handling. These lead to increased output, higher process security, reduction of tool inventory and elimination of regrinding costs.

Specifications

Drill Depth by Diameter Ratio 5XD
Drill Size 19 to 19.99 mm
Flute Length 113 mm
Insert Style SD400
Maximum Drill Depth 100 mm
Overall Length 182 mm
Point Angle 140 deg
Series Crownloc® Plus
Shank Diameter 20 mm
Shank Length 50 mm
Shank Type Cylindrical
Through Coolant (Yes/No) Yes
Toolholder Type SD405
Type Right Hand

Country of Origin: Sweden

Features

  • Exchangeable carbide tips
  • Geometries for different workpiece materials
  • No regrinding
