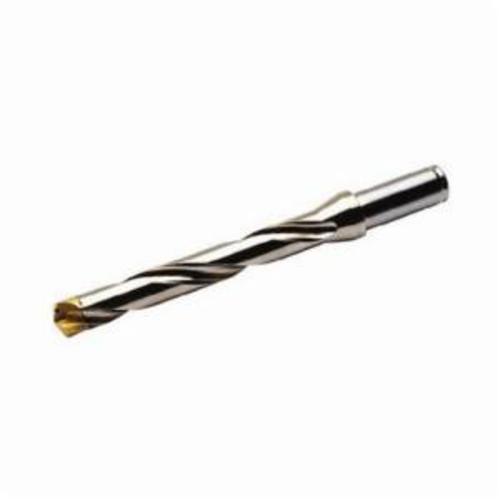

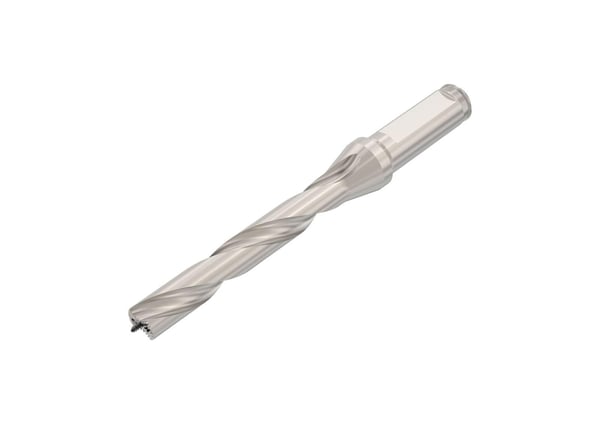

Seco 00040005 Crownloc® Right Hand Exchangeable Tip Drill, 13 to 13.99 mm Drill, SD100 Insert, 6.594 in OAL, 7XD Drill Depth by Dia Ratio, 5/8 in Dia Shank, SD107 Toolholder


Description

Seco Exchangeable Tip Drill, Right Hand, Series: Crownloc®, 13 to 13.99 mm Drill, ISO 9766/Weldon Shank, 5/8 in Shank Diameter, 1.89 in Shank Length, 3.996 in Flute Length, 6.594 in Overall Length, SD107 Toolholder, 140 deg Point, 90 mm Maximum Drill Depth, 7XD Drill Depth by Diameter Ratio, SD100 Insert, Yes Through Coolant

Crownloc® is a range of exchangeable tip drills designed to offer high-quality holes at a lower cost. Matching the quality of high precision drills, Crownloc® uses replaceable crowns to eliminate the need for and cost of regrinding. This guarantees consistently higher performance and tool life while also reducing the number of drills required in inventory. Crownloc® features a unique clamping design with a precision ground interface of interlocking V-grooves to allow high cutting speeds and ensure rigidity and exact repeatability of positioning of each crown. Long land margins provide excellent guidance to ensure high hole quality and self-centering geometry eliminates the need for center drilling operations. Double coolant holes through the crown permit a high volume of coolant to reach the cutting edges. The result is safer chip evacuation and longer tool life.

Specifications

Drill Depth by Diameter Ratio 7XD
Drill Size 13 to 13.99 mm
Flute Length 3.996 in
Insert Style SD100
Maximum Drill Depth 90 mm
Overall Length 6.594 in
Point Angle 140 deg
Series Crownloc®
Shank Diameter 5/8 in
Shank Length 1.89 in
Shank Type ISO 9766/Weldon
Through Coolant (Yes/No) Yes
Toolholder Type SD107
Type Right Hand

Country of Origin: Sweden

Standards and Approvals: ISO 5414, DIN 60880, DIN 1835B

Features

  • Exchangeable carbide tips
  • Geometries for different workpiece materials
  • No regrinding
