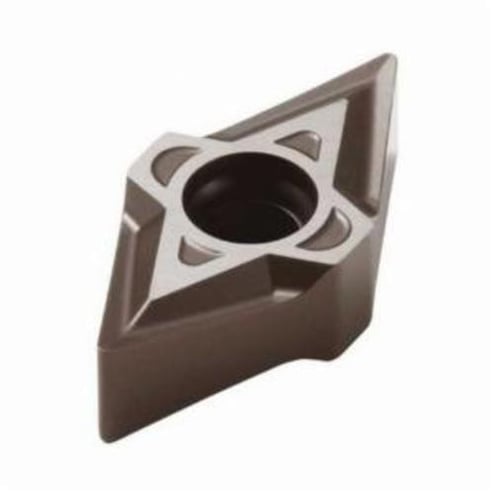

Seco 39815 Turning Insert, ANSI Code: DNMU331-MF1 TM2000, DNMU Insert, Material Grade: M, 110404 Insert, Diamond Shape, 11 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: TM2000


Description

Seco Turning Insert, DNMU Insert, 110404 Insert, Diamond, 3.75 mm Maximum Depth of Cut, 9.53 mm Inscribed Circle, 4.76 mm Thickness, 11 Seat, Negative Rake, MF1 Chipbreaker, 0.4 mm Corner Radius, 3.81 mm Hole Dia, Manufacturer's Grade: TM2000, ANSI Code: DNMU331-MF1 TM2000, ISO Code: DNMU110404-MF1 TM2000, 55 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: M, For Use On: Stainless Steel

Specifications

ANSI Code DNMU331-MF1 TM2000
Chipbreaker MF1
Corner Radius 0.4 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Stainless Steel
Hole Diameter 3.81 mm
Included Angle 55 deg
Inscribed Circle 9.53 mm
Insert Size 110404
Insert Style DNMU
ISO Code DNMU110404-MF1 TM2000
Manufacturer's Grade TM2000
Material Carbide
Material Grade M
Maximum Depth of Cut 3.75 mm
Rake Negative
Relief Angle 0 deg
Seat Size 11
Shape Diamond
Thickness 4.76 mm

Country of Origin: Sweden

Application:
Medium and Finishing
