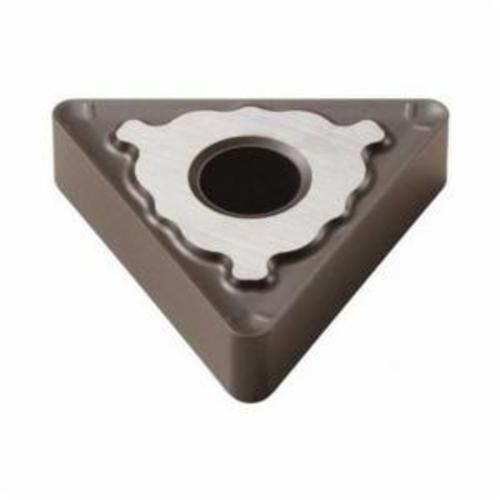

Seco 39552 Turning Insert, ANSI Code: TNMG332-MR6 TP2500, TNMG Insert, Material Grade: P, 160408 Insert, Triangular Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP2500


Description

Seco Turning Insert, TNMG Insert, 160408 Insert, Triangular, 3.75 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 16.5 mm Length, 16 Seat, Negative Rake, MR6 Chipbreaker, 0.8 mm Corner Radius, 3.81 mm Hole Dia, Manufacturer's Grade: TP2500, ANSI Code: TNMG332-MR6 TP2500, ISO Code: TNMG160408-MR6 TP2500, 60 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

Specifications

ANSI Code TNMG332-MR6 TP2500
Chipbreaker MR6
Corner Radius 0.8 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Steel
Hole Diameter 3.81 mm
Included Angle 60 deg
Inscribed Circle 9.52 mm
Insert Size 160408
Insert Style TNMG
ISO Code TNMG160408-MR6 TP2500
Length 16.5 mm
Manufacturer's Grade TP2500
Material Carbide
Material Grade P
Maximum Depth of Cut 3.75 mm
Rake Negative
Relief Angle 0 deg
Seat Size 16
Shape Triangular
Thickness 4.76 mm

Country of Origin: Sweden

Application:
Medium and Roughing
