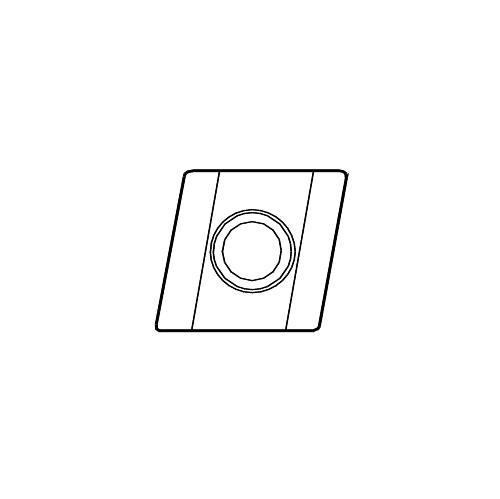

Seco 00039546 Insert, CCGT Insert, 6.35 mm Inscribed Circle, Carbide, Manufacturer's Grade: 26G6

Seco, 00039546, Insert, CCGT Insert, 60202 Insert, Diamond Shape, 6.35 mm Inscribed Circle, 0.20 mm Corner Radius, Manufacturer's Grade: 26G6, 80 deg Included Angle, Carbide

The Turning insert CCGT060202 26G6 features a positive type geometry with a clearance angle major of 7 degrees. It is made from coated carbide with grade 26G6. The insert has two cutting edges, a corner radius of 0.2 mm, and a cutting edge effective length of 6.3 mm. The insert hand is neutral. This insert is designed primarily for machining steel, stainless steel, and cast irons, with partial applicability to non-ferrous materials. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
