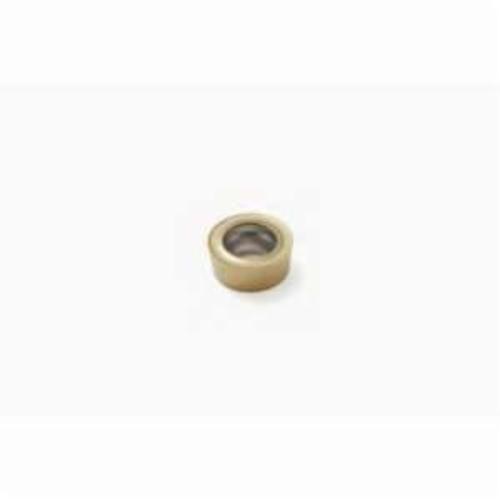

Seco 02615940 Turning Insert, ANSI Code: RCMT1204M0-F2 TS2000, RCMT Insert, Material Grade: S, 1204M0 Insert, Round Shape, 12 Seat, Positive Rake, Neutral Cutting, For Use On Super Alloys and Titanium, Carbide, Manufacturer's Grade: TS2000


Description

Seco Turning Insert, RCMT Insert, 1204M0 Insert, Round, 5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Positive Rake, F2 Chipbreaker, 4.5 mm Hole Dia, Manufacturer's Grade: TS2000, ANSI Code: RCMT1204M0-F2 TS2000, ISO Code: RCMT1204M0-F2 TS2000, 7 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: S, For Use On: Super Alloys and Titanium

Specifications

ANSI Code RCMT1204M0-F2 TS2000
Chipbreaker F2
Cutting Direction Neutral
Finish PVD-TiAlN+TiN Coated
For Use On Super Alloys and Titanium
Hole Diameter 4.5 mm
Inscribed Circle 12.7 mm
Insert Size 1204M0
Insert Style RCMT
ISO Code RCMT1204M0-F2 TS2000
Manufacturer's Grade TS2000
Material Carbide
Material Grade S
Maximum Depth of Cut 5 mm
Rake Positive
Relief Angle 7 deg
Seat Size 12
Shape Round
Thickness 4.76 mm

Country of Origin: India

Application:
Finishing Applications
