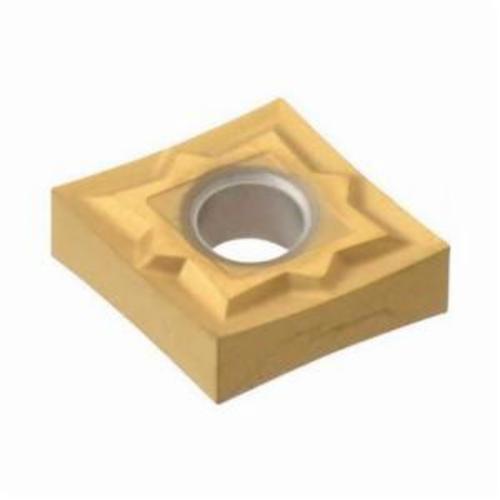

Seco 02615891 Turning Insert, ANSI Code: CNGP430-MF1 TS2000, CNGG Insert, Material Grade: M, S, 120401 Insert, Diamond Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel and Titanium/Super Alloys, Carbide, Manufacturer's Grade: TS2


Description

Seco Turning Insert, CNGG Insert, 120401 Insert, Diamond, 5.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Negative Rake, MF1 Chipbreaker, 0.1 mm Corner Radius, 5.15 mm Hole Dia, Manufacturer's Grade: TS2000, ANSI Code: CNGP430-MF1 TS2000, ISO Code: CNGG120401-MF1 TS2000, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M, S, For Use On: Stainless Steel and Titanium/Super Alloys

Specifications

ANSI Code CNGP430-MF1 TS2000
Chipbreaker MF1
Corner Radius 0.1 mm
Cutting Direction Neutral
Finish PVD-TiAlN+TiN Coated
For Use On Stainless Steel and Titanium/Super Alloys
Hole Diameter 5.15 mm
Included Angle 80 deg
Inscribed Circle 12.7 mm
Insert Size 120401
Insert Style CNGG
ISO Code CNGG120401-MF1 TS2000
Manufacturer's Grade TS2000
Material Carbide
Material Grade M, S
Maximum Depth of Cut 5.25 mm
Rake Negative
Relief Angle 0 deg
Seat Size 12
Shape Diamond
Thickness 4.76 mm

Country of Origin: Sweden

Application:
Medium and Finishing
