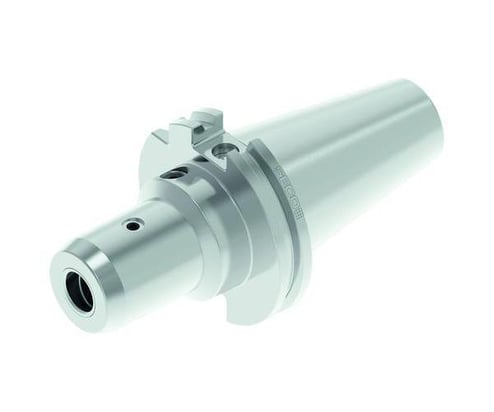

Seco 00038923 Holder/Chuck, Taper Shank, 6 mm Dia Hole, 1.023 in Dia Nose, 3.149 in Projection


Description

Seco, 00038923, Holder/Chuck, Taper Shank, DIN40 Taper, 6 mm Diameter Hole, 1.023 in Diameter Nose, 3.149 in Projection, 1.496 in Clamping Depth, 5.842 in Overall Length, Through Coolant (Yes/No): Yes

Specifications

Clamping Depth 1.496 in
Hole Diameter 6 mm
Nose Diameter 1.023 in
Overall Length 5.842 in
Projection 3.149 in
Shank Type Taper
Taper Size DIN40
Through Coolant (Yes/No) Yes

Country of Origin: France

Features

  • Fine balanced as standard, hydraulic chucks can reach rotation speeds up to 40,000 rpm
  • The stop end screw allows the projection of the tool to be easily set, while reduction sleeves, acting as a split collet, allow the chuck to grip more shank sizes and types, including Weldon and Whistle Notch, makes it easy to perform semi-finishing and finishing operations in confined spaces such as narrow mould cavities
