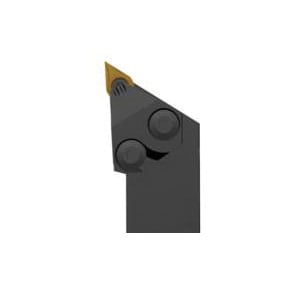

Seco 37864 Jetstream Tooling® Indexable Turning Tool Holder With Coolant Through Technology, ANSI Code: SDJCR-20-3JET, SDJC Tool Holder, DC..32.5.. Insert, Right Hand Cutting, 31.8 mm W Square Shank, 93 deg Lead Angle, Neutral Rake, 152.4 mm OAL


Description

Seco Indexable Turning Tool Holder, Series: Jetstream Tooling®, SDJC Tool Holder, 152.4 mm Overall Length, Square Shank, 31.8 mm W Shank, Insert Compatibility: DC..32.5.., Right Hand Cutting, 9.53 mm Inscribed Circle, 38.1 mm Back of Bar to Cutting Edge, 93 deg Lead Angle, 38 mm Head Length, ANSI Code: SDJCR-20-3JET, Neutral Rake, Steel

Jetstream Tooling® toolholders deliver coolant effectively through the toolholder to the optimum position close to the cutting edge. This improves chip control by lifting the chip away from the rake face and reducing the heat load, enabling longer tool life and drastically increasing cutting data to be applied. A comprehensive range of insert types, shapes and sizes are available.

Specifications

ANSI Code SDJCR-20-3JET
Back of Bar to Cutting Edge 38.1 mm
Cutting Direction Right Hand
Head Length 38 mm
Inscribed Circle 9.53 mm
Insert Compatibility DC..32.5..
Lead Angle 93 deg
Material Steel
Overall Length 152.4 mm
Rake Neutral
Series Jetstream Tooling®
Shank Size 31.8 mm W
Shank Type Square
Tool Holder Style SDJC

Country of Origin: India
