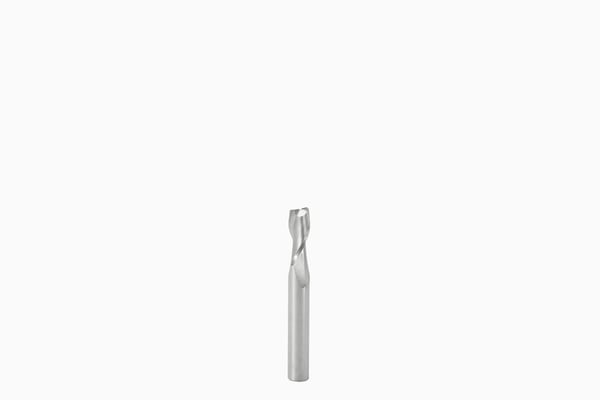

Seco JABRO® VHM 02606063 J93 Center Cutting Single End Square End Mill, 0.236 in Dia Cutter, 0.787 in Length of Cut, 2 Flutes, 0.236 in Dia Shank, 2.559 in OAL, Uncoated


Description

Seco JABRO® VHM End Mill, Center Cutting Single End Square End, Series: J93, 0.236 in Diameter Cutter, 2.559 in Overall Length, 0.787 in Length of Cut, 2 Flutes, Spiral Flute, 0.236 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: 93060-F, ISO Code: 93060-F, Solid Carbide, Uncoated

Seco® has developed an extensive range of VHM solid carbide milling cutters with diameters of 1 - 32 mm based on their extensive knowledge and experience in this field. The available geometries are specifically designed to fit many applications and the range is so extensive that you are likely to find a standard application where a custom made cutter would normally be required.

Specifications

ANSI Code 93060-F
Cutter Diameter 0.236 in
Cutting Direction Right Hand
Finish Uncoated
Flute Type Spiral
Helix Angle 30 deg
ISO Code 93060-F
Length of Cut 0.787 in
Material Solid Carbide
Number of Flutes 2
Overall Length 2.559 in
Series J93
Shank Diameter 0.236 in
Shank Type Cylindrical
Type Center Cutting Single End Square End

Country of Origin: Netherlands

Features

  • JABRO®-VHM - General machining technology
  • Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
  • Uncoated tools do not feature supportive treatments on the cutting edge, they are used at reduced speeds for general applications on non-ferrous metals
  • 90 deg cutting edge
  • 1.417 in L minimum clamping
  • 30 deg axial rake
  • 10 deg radial rake
  • D - Cylindrical tool shape
