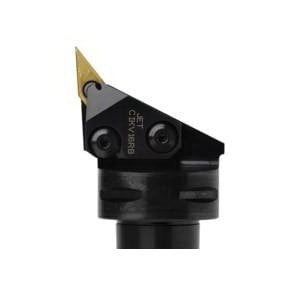

Seco 37131 Seco-Capto™ Jetstream Tooling® Modular Turning/Profiling Cutting Head With Through Coolant, C6 System, 65 mm L Head/Projection, Right Hand Cutting, Insert Compatibility: VB../VC..1604.., External


Description

Seco Modular Turning/Profiling Cutting Head, Series: Seco-Capto™ Jetstream Tooling®, System Size: C6, 65 mm Head Length/Projection, VBMT/VBGT/VBGW/VBMW/VCGT Insert, Insert Compatibility: VB../VC..1604.., Right Hand Cutting Direction, 45 mm Center to Cutting Edge, Screw Insert Holding Method, External

Seco-Capto™ is a leading quick-change modular tooling system for quick setup and replacement of cutting edge holders. Its robust product design allows retaining excellent stability and high positioning accuracy. The product range serves a comprehensive range of insert types, shapes and sizes.

Specifications

Center to Cutting Edge 45 mm
Cutting Direction Right Hand
Head Length/Projection 65 mm
Insert Compatibility VB../VC..1604..
Insert Holding Method Screw
Insert Style VBMT/VBGT/VBGW/VBMW/VCGT
Internal or External External
Series Seco-Capto™ Jetstream Tooling®
System Size C6

Includes: Inducer Kit, Inducer Screw, Insert/Inducer Key, Insert Screw, Insert Shim, O-Ring and Shim Screw

Country of Origin: India

Features

  • Quick tool change, increases the available productive time
  • Flexible, same toolholder can be used in different machines which reduces the tool stock
  • Modular, building of tools with extension adapters reduces the tool stock
  • Rigid, no reduction of cutting data
  • Accurate, tapered polygon coupling produces a strong, self-centering joint with repeatability within +/-0.002 mm
