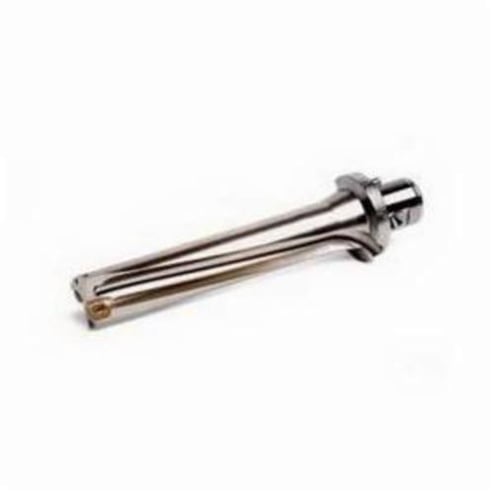

Seco 36709 Perfomax™ SD505 Indexable Insert Drill, 26 mm Drill, ABS 50 Modular Connection, 32 mm Dia Shank, 5XD Drill Depth by Dia Ratio, SPGX/SCGX Insert, 191 mm OAL, 130 mm D Max Drill


Description

Seco Indexable Insert Drill, Series: Perfomax™ SD505, 26 mm Drill, 32 mm Shank Dia, 31 mm Shank Length, Modular Connection Shank, ABS 50 Modular Connection Size, SPGX/SCGX Insert, 130 mm Maximum Drill Depth, 191 mm Overall Length, 26 mm Dia, 5XD Drill Depth by Dia Ratio, 2 Drill Inserts, Insert Compatibility: SPGX0903-C1 Center, SCGX070308.. Peripheral, 135 mm Flute Length, Yes Through Coolant (Yes/No)

Perfomax™ is a long standing, proven range of indexable insert drills that offers an economical solution when it comes to productively drilling holes. Reliable and trustworthy, the strong, square inserts each offer four cutting edges. They can be used with most modern insert grades and coatings. The drill body design features a unique chip flute design, through coolant holes on all sizes and a low friction coating to optimize chip evacuation. The Perfomax™ drill body design is strong and sturdy, capable of handling the highest productivity and offers strong performance in unstable applications.

Specifications

Diameter 26 mm
Drill Depth by Diameter Ratio 5XD
Drill Size 26 mm
Flute Length 135 mm
Insert Compatibility SPGX0903-C1 Center, SCGX070308.. Peripheral
Insert Style SPGX/SCGX
Maximum Drill Depth 130 mm
Modular Connection Size ABS 50
Number of Drill Inserts 2
Overall Length 191 mm
Series Perfomax™ SD505
Shank Diameter 32 mm
Shank Length 31 mm
Shank Type Modular Connection
Through Coolant (Yes/No) Yes

Country of Origin: Sweden

Features

  • Effective chip control for long chipping ductile materials
  • Fast and efficient chip evacuation
  • Higher cutting parameters for increased drilling output
  • Longer tool life gives reduced tool cost
  • Exceptional process predictability and reliability
  • Better hole tolerance
