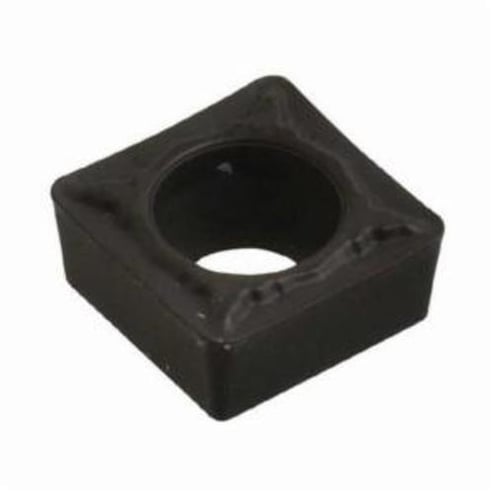

Seco 36464 Turning Insert, ANSI Code: SCMT32.52-F1 TP1500, SCMT Insert, Material Grade: H, 09T308 Insert, Squared Shape, 09 Seat, Positive Rake, Neutral Cutting, For Use On Hard Materials, Carbide, Manufacturer's Grade: TP1500


Description

Seco Turning Insert, SCMT Insert, 09T308 Insert, Squared, 3.75 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.97 mm Thickness, 9.52 mm Width, 9.52 mm Length, 09 Seat, Positive Rake, F1 Chipbreaker, 0.8 mm Corner Radius, 4.5 mm Hole Dia, Manufacturer's Grade: TP1500, ANSI Code: SCMT32.52-F1 TP1500, ISO Code: SCMT09T308-F1 TP1500, 90 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: H, For Use On: Hard Materials

Specifications

ANSI Code SCMT32.52-F1 TP1500
Chipbreaker F1
Corner Radius 0.8 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Hard Materials
Hole Diameter 4.5 mm
Included Angle 90 deg
Inscribed Circle 9.52 mm
Insert Size 09T308
Insert Style SCMT
ISO Code SCMT09T308-F1 TP1500
Length 9.52 mm
Manufacturer's Grade TP1500
Material Carbide
Material Grade H
Maximum Depth of Cut 3.75 mm
Rake Positive
Relief Angle 7 deg
Seat Size 09
Shape Squared
Thickness 3.97 mm
Width 9.52 mm

Country of Origin: Sweden

Application:
Finishing Applications
