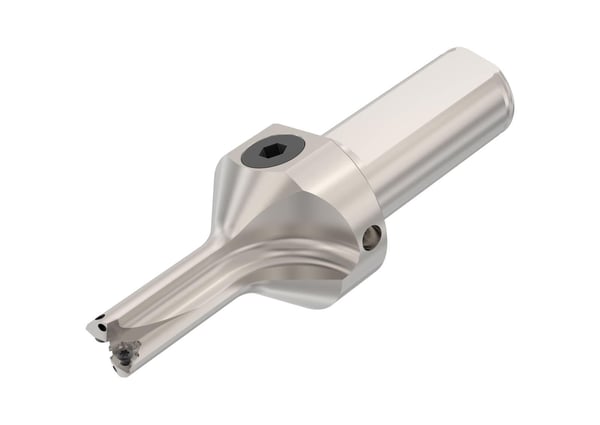

Seco 02595783 Perfomax™ SD572 Indexable Insert Drill, 27 mm Drill, 50 mm Modular Connection, 32 mm Dia Shank, 2XD Drill Depth by Dia Ratio, WCMX Insert, 149 mm OAL, 54 mm D Max Drill


Description

Seco Indexable Insert Drill, Series: 500F, 27 mm Drill, 32 mm Shank Dia, 60 mm Shank Length, ISO 9766 Shank, 50 mm Modular Connection Size, WCMX Insert, 54 mm Maximum Drill Depth, 149 mm Overall Length, 27 mm Dia, 2XD Drill Depth by Dia Ratio, 2 Drill Inserts, Insert Compatibility: WCMX06T308-86 Center, WCMX050308.. Peripheral, 59 mm Flute Length, Yes Through Coolant (Yes/No)

Perfomax™ is a long standing, proven range of indexable insert drills that offers an economical solution when it comes to productively drilling holes. Reliable and trustworthy, the strong, square inserts each offer four cutting edges. They can be used with most modern insert grades and coatings. The drill body design features a unique chip flute design, through coolant holes on all sizes and a low friction coating to optimize chip evacuation. The Perfomax™ drill body design is strong and sturdy, capable of handling the highest productivity and offers strong performance in unstable applications.

Specifications

Diameter 27 mm
Drill Depth by Diameter Ratio 2XD
Drill Size 27 mm
Flute Length 59 mm
Insert Compatibility WCMX06T308-86 Center, WCMX050308.. Peripheral
Insert Style WCMX
Maximum Drill Depth 54 mm
Modular Connection Size 50 mm
Number of Drill Inserts 2
Overall Length 149 mm
Series Perfomax™ SD572
Shank Diameter 32 mm
Shank Length 60 mm
Shank Type ISO 9766
Through Coolant (Yes/No) Yes

Country of Origin: Sweden

Features

  • Effective chip control for long chipping ductile materials
  • Fast and efficient chip evacuation
  • Higher cutting parameters for increased drilling output
  • Longer tool life gives reduced tool cost
  • Exceptional process predictability and reliability
  • Better hole tolerance
