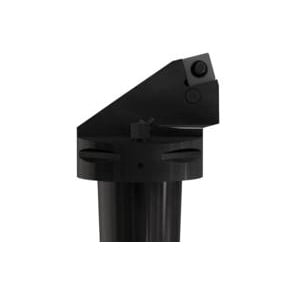

Seco 35363 Seco-Capto™ Modular Turning/Profiling Cutting Head With Through Coolant, C8 System, 80 mm L Head/Projection, Left Hand Cutting, Insert Compatibility: SN..1906.., External


Description

Seco Modular Turning/Profiling Cutting Head, Series: Seco-Capto™, System Size: C8, 80 mm Head Length/Projection, SNMA/SNMG/SNMM Insert, Insert Compatibility: SN..1906.., Left Hand Cutting, 45 mm Center to Cutting Edge, Pin/Wedge/Lever Insert Holding Method, External Internal or External

Seco-Capto™ is a leading quick-change modular tooling system for quick setup and replacement of cutting edge holders. Its robust product design allows retaining excellent stability and high positioning accuracy. The product range serves a comprehensive range of insert types, shapes and sizes.

Specifications

Center to Cutting Edge 45 mm
Cutting Direction Left Hand
Head Length/Projection 80 mm
Insert Compatibility SN..1906..
Insert Holding Method Pin/Wedge/Lever
Insert Style SNMA/SNMG/SNMM
Internal or External External
Series Seco-Capto™
System Size C8

Includes: Coolant Nozzle, Insert Lever, Insert Shim, Lever Key, Lever Screw, Punch and Shim Pin

Features

  • Quick tool change, increases the available productive time
  • Flexible, same toolholder can be used in different machines which reduces the tool stock
  • Modular, building of tools with extension adapters reduces the tool stock
  • Rigid, no reduction of cutting data
  • Accurate, tapered polygon coupling produces a strong, self-centering joint with repeatability within +/-0.002 mm
