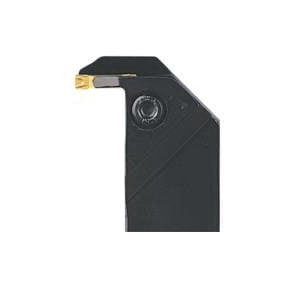

Seco 00035355 Multi-Directional Indexable Turning Tool Holder, ANSI Code: CGIR2525M05R170110, CGIR Tool Holder, LC..1605.. Insert, Right Hand Cutting, 25 mm W Square Shank, 90 deg Lead Angle, 150 mm OAL


Description

Seco Indexable Turning Tool Holder, Multi-Directional, CGIR Tool Holder, 150 mm Overall Length, Square Shank, 25 mm W Shank, Insert Compatibility: LC..1605.., 5 Insert Seat, Right Hand Cutting, 15.88 mm Inscribed Circle, 41.4 mm Back of Bar to Cutting Edge, 90 deg Lead Angle, 33 mm Head Length, ANSI Code: CGIR2525M05R170110, Steel

The Seco MDT (Multi-Directional turning) is universally suitable for variety of applications including grooving, profiling, turning, parting-off, and threading. The unique Secoloc™ clamping delivers the best stability and safety in addition to high productivity and performance. Applications include turning parts with many different diameters, complicated profiles and grooves, replacing the need for several standard and special tools with a single Seco MDT. Further savings can be achieved through fewer tool changes and reduced tool stock. The unique insert clamping method Secoloc™ combines a V-shaped top clamp with serrated contact surfaces between the underside of the insert and the toolholder for superb stability. The relatively long insert also increases stability. MDT is available also in combination with Jetstream Tooling®, a high pressure cooling system directing coolant supply to the cutting edge.

Specifications

ANSI Code CGIR2525M05R170110
Back of Bar to Cutting Edge 41.4 mm
Cutting Direction Right Hand
Head Length 33 mm
Inscribed Circle 15.88 mm
Insert Compatibility LC..1605..
Insert Seat Size 5
Lead Angle 90 deg
Material Steel
Overall Length 150 mm
Shank Size 25 mm W
Shank Type Square
Tool Holder Style CGIR
Type Multi-Directional

Country of Origin: India

Application:
Turning and Grooving
