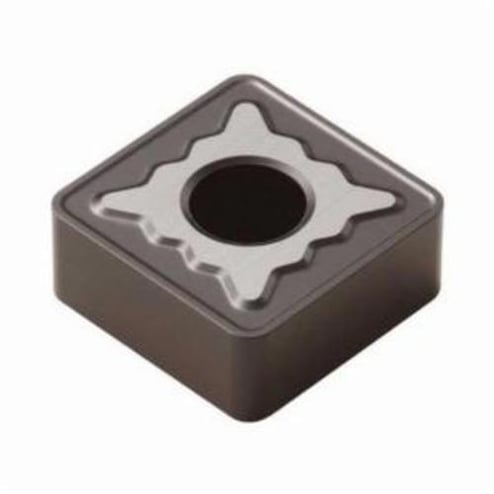

Seco 35174 Turning Insert, ANSI Code: SNMG644-MR7 TM4000, SNMG Insert, Material Grade: M, 190616 Insert, Squared Shape, 19 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: TM4000


Description

Seco Turning Insert, SNMG Insert, 190616 Insert, Squared, 13 mm Maximum Depth of Cut, 19.05 mm Inscribed Circle, 6.35 mm Thickness, 19.05 mm Width, 19.05 mm Length, 19 Seat, Negative Rake, MR7 Chipbreaker, 1.6 mm Corner Radius, 7.92 mm Hole Dia, Manufacturer's Grade: TM4000, ANSI Code: SNMG644-MR7 TM4000, ISO Code: SNMG190616-MR7 TM4000, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: M, For Use On: Stainless Steel

Specifications

ANSI Code SNMG644-MR7 TM4000
Chipbreaker MR7
Corner Radius 1.6 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Stainless Steel
Hole Diameter 7.92 mm
Included Angle 90 deg
Inscribed Circle 19.05 mm
Insert Size 190616
Insert Style SNMG
ISO Code SNMG190616-MR7 TM4000
Length 19.05 mm
Manufacturer's Grade TM4000
Material Carbide
Material Grade M
Maximum Depth of Cut 13 mm
Rake Negative
Relief Angle 0 deg
Seat Size 19
Shape Squared
Thickness 6.35 mm
Width 19.05 mm

Country of Origin: India

Application:
Medium and Roughing
