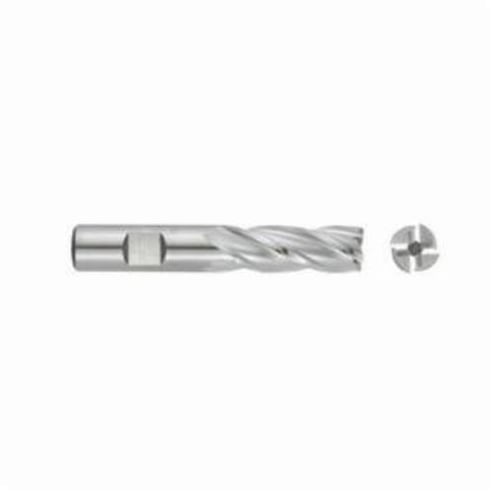

Seco Niagara Cutter N35150 S404 Non-Center Cutting Short Length Single End Square End End Mill, 15/32 in Dia Cutter, 1 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 2-11/16 in OAL, TiN Coated


Description

Seco Niagara Cutter End Mill, Non-Center Cutting Short Length Single End Square End, Series: S404, 15/32 in Diameter Cutter, 2-11/16 in Overall Length, 1 in Length of Cut, 4 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, ANSI Code: S404-0.469-P2-S.3-Z4, ISO Code: S404.469P2S.3Z4, HSS, TiN Coated

Specifications

ANSI Code S404-0.469-P2-S.3-Z4
Cutter Diameter 15/32 in
Cutting Direction Right Hand
Finish TiN Coated
Flute Type Spiral
Helix Angle 30 deg
ISO Code S404.469P2S.3Z4
Length of Cut 1 in
Material HSS
Number of Flutes 4
Overall Length 2-11/16 in
Series S404
Shank Diameter 3/8 in
Shank Type Weldon Flat
Type Non-Center Cutting Short Length Single End Square End

Country of Origin: United States

Application:
For profile and slot milling applications in all common materials

Features

  • High speed steel (HSS) provides good wear resistance, it is commonly used for general purpose applications on both ferrous and non-ferrous materials
  • Titanium nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials and the heat and hardness resistance allows the tool to run at higher speeds than uncoated tools
  • 90 deg cutting edge
  • 1.562 in L minimum clamping
  • 30 deg axial rake
  • 10 deg radial rake
  • Square nose end mills create sharp, unrounded cuts
  • Non-center-cutting design supports peripheral milling and finishing
  • P - Tool shape
