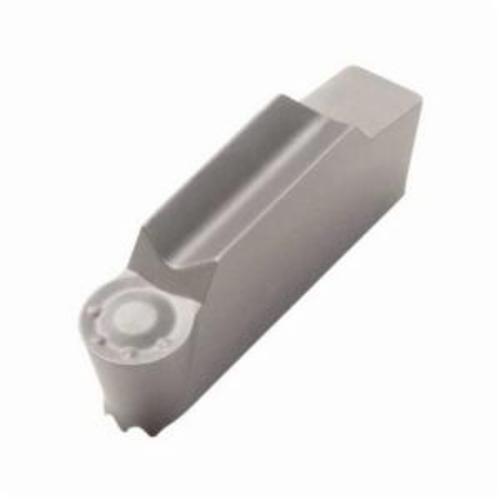

Seco 00034656 MDT Single End Turning Insert, ANSI Code: LCMR1606M0-0600-MP 883, LCMR Insert, Material Grade: S, 1606 Insert, Rectangle Shape, 16 Seat, Neutral Cutting, For Use On Super Alloys and Titanium, Carbide, Manufacturer's Grade: 883


Description

Seco Turning Insert, Single End, Series: MDT, LCMR Insert, 1606 Insert, Rectangle Shape, 4.12 mm Thickness, 17.9 mm Length, 16 Seat, MP Chipbreaker, 3 mm Corner Radius, Manufacturer's Grade: 883, ANSI Code: LCMR1606M0-0600-MP 883, ISO Code: LCMR1606M0-0600-MP 883, 7 deg Relief Angle, Neutral Cutting Direction, Carbide, Uncoated, Material Grade: S, For Use On: Super Alloys and Titanium

Specifications

ANSI Code LCMR1606M0-0600-MP 883
Chipbreaker MP
Corner Radius 3 mm
Cutting Direction Neutral
Finish Uncoated
For Use On Super Alloys and Titanium
Insert Size 1606
Insert Style LCMR
ISO Code LCMR1606M0-0600-MP 883
Length 17.9 mm
Manufacturer's Grade 883
Material Carbide
Material Grade S
Relief Angle 7 deg
Seat Size 16
Series MDT
Shape Rectangle
Thickness 4.12 mm
Type Single End

Country of Origin: India

Application:
For medium profiling, turning and good accessibility
