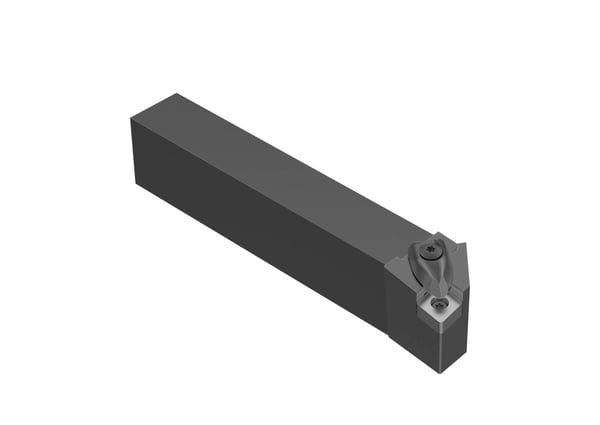

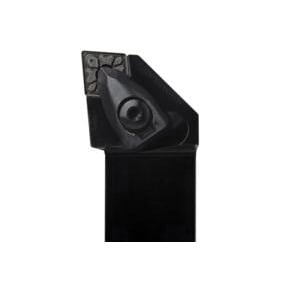

Seco 02588080 Indexable Turning Tool Holder, ANSI Code: DCLNL3225P12-M, DCLN Tool Holder, CNM..1204.. Insert, Left Hand Cutting, 25 mm W Square Shank, 95 deg Lead Angle, Negative Rake, 170 mm OAL


Description

Seco Indexable Turning Tool Holder, DCLN Tool Holder, 170 mm Overall Length, Square Shank, 25 mm W Shank, Insert Compatibility: CNM..1204.., 4 Insert Seat, Left Hand Cutting, 12.7 mm Inscribed Circle, 32 mm Back of Bar to Cutting Edge, 95 deg Lead Angle, 32 mm Head Length, ANSI Code: DCLNL3225P12-M, Negative Rake, Steel

This wide offering of easily applicable shank and boring bar toolholders adds another level of reliability and productivity to lathe machining. The range of ISO and ANSI toolholders accommodates a comprehensive range of insert types, shapes and sizes, also allowing choice of several leading clamping methods.

Specifications

ANSI Code DCLNL3225P12-M
Back of Bar to Cutting Edge 32 mm
Cutting Direction Left Hand
Head Length 32 mm
Inscribed Circle 12.7 mm
Insert Compatibility CNM..1204..
Insert Seat Size 4
Lead Angle 95 deg
Material Steel
Overall Length 170 mm
Rake Negative
Shank Size 25 mm W
Shank Type Square
Tool Holder Style DCLN

Country of Origin: India
