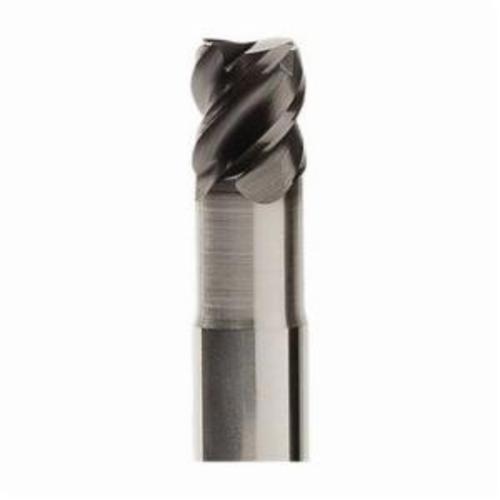

Seco JABRO® HPM 02587633 HPM JHP170 Center Cutting High Performance Single End Mill, 16 mm Dia Cutter, 0.5 mm Corner Radius, 16 mm Length of Cut, 4 Flutes, 16 mm Dia Shank, 80 mm OAL, MEGA-64/PVD Coated


Description

Seco JABRO® HPM End Mill, Center Cutting High Performance Single End, Series: HPM JHP170, 16 mm Diameter Cutter, 0.5 mm Corner Radius, 80 mm Overall Length, 16 mm Length of Cut, 4 Flutes, Right Spiral Flute, 16 mm Shank Diameter, Right Hand Cutting Direction, 50 deg Helix Angle, Cylindrical Shank, ANSI Code: 170160R050.0-MEGA-64, ISO Code: 170160R050.0-MEGA-64, Solid Carbide, MEGA-64/PVD Coated

High performance machining (HPM) is a machining strategy where high metal removal rates can be achieved by using conventional feeds and speeds in combination with very high ae and ap values. The result is high productivity (material removal rates up to 400% higher compared to conventional machining) and the lowest possible production costs. The HPM range consists of tools for soft, medium and hard steel, stainless steel, super alloys and titanium.

Specifications

ANSI Code 170160R050.0-MEGA-64
Corner Radius 0.5 mm
Cutter Diameter 16 mm
Cutting Direction Right Hand
Finish MEGA-64/PVD Coated
Flute Type Right Spiral
Helix Angle 50 deg
ISO Code 170160R050.0-MEGA-64
Length of Cut 16 mm
Material Solid Carbide
Number of Flutes 4
Overall Length 80 mm
Series HPM JHP170
Shank Diameter 16 mm
Shank Type Cylindrical
Type Center Cutting High Performance Single End

Country of Origin: Netherlands

Application:
Radial and Ramping Applications
