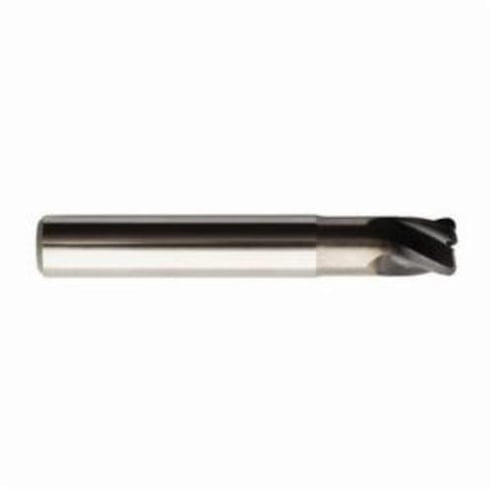

Seco JABRO® 32986 HSM/Tornado JH141 High Speed Non-Center Cutting Single End Mill, 8 mm Dia Cutter, 2 mm Corner Radius, 8 mm Length of Cut, 4 Flutes, 10 mm Dia Shank, 85 mm OAL, MEGA-64/PVD Coated


Description

Seco JABRO® End Mill, High Speed Non-Center Cutting Single End, Series: HSM/Tornado JH141, 8 mm Diameter Cutter, 2 mm Corner Radius, 85 mm Overall Length, 8 mm Length of Cut, 4 Flutes, Right Spiral Flute, 10 mm Shank Diameter, Right Hand Cutting Direction, 28 deg Helix Angle, Cylindrical Shank, ANSI Code: 141VL080R200TNZ4-MEGA-64, ISO Code: 141VL080R200TNZ4-MEGA-64, Solid Carbide, MEGA-64/PVD Coated

Seco is offering you the Tornado program. Tornado is a complete range of solid carbide cutters especially developed for high speed machining. Tornado is the result of continuous research into the best possible combination of solid carbide quality, cutter geometry and coatings in relation to the material to be machined.

Specifications

ANSI Code 141VL080R200TNZ4-MEGA-64
Corner Radius 2 mm
Cutter Diameter 8 mm
Cutting Direction Right Hand
Finish MEGA-64/PVD Coated
Flute Type Right Spiral
Helix Angle 28 deg
ISO Code 141VL080R200TNZ4-MEGA-64
Length of Cut 8 mm
Material Solid Carbide
Number of Flutes 4
Overall Length 85 mm
Series HSM/Tornado JH141
Shank Diameter 10 mm
Shank Type Cylindrical
Type High Speed Non-Center Cutting Single End

Country of Origin: Netherlands

Application:
Radial and Ramping Applications
