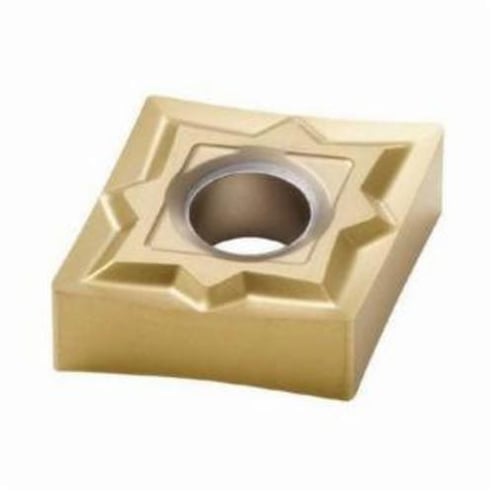

Seco 32724 Turning Insert, ANSI Code: CNGP432-MF1 CP200P, CNGG Insert, Material Grade: M, S, 120408 Insert, Diamond Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel and Titanium/Super Alloys, Carbide, Manufacturer's Grade: CP200P


Description

Seco Turning Insert, CNGG Insert, 120408 Insert, Diamond, 5.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Negative Rake, MF1 Chipbreaker, 0.8 mm Corner Radius, 5.15 mm Hole Dia, Manufacturer's Grade: CP200P, ANSI Code: CNGP432-MF1 CP200P, ISO Code: CNGG120408-MF1 CP200P, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M, S, For Use On: Stainless Steel and Titanium/Super Alloys

Specifications

ANSI Code CNGP432-MF1 CP200P
Chipbreaker MF1
Corner Radius 0.8 mm
Cutting Direction Neutral
Finish PVD-TiAlN+TiN Coated
For Use On Stainless Steel and Titanium/Super Alloys
Hole Diameter 5.15 mm
Included Angle 80 deg
Inscribed Circle 12.7 mm
Insert Size 120408
Insert Style CNGG
ISO Code CNGG120408-MF1 CP200P
Manufacturer's Grade CP200P
Material Carbide
Material Grade M, S
Maximum Depth of Cut 5.25 mm
Rake Negative
Relief Angle 0 deg
Seat Size 12
Shape Diamond
Thickness 4.76 mm

Country of Origin: Sweden

Application:
Medium and Finishing
