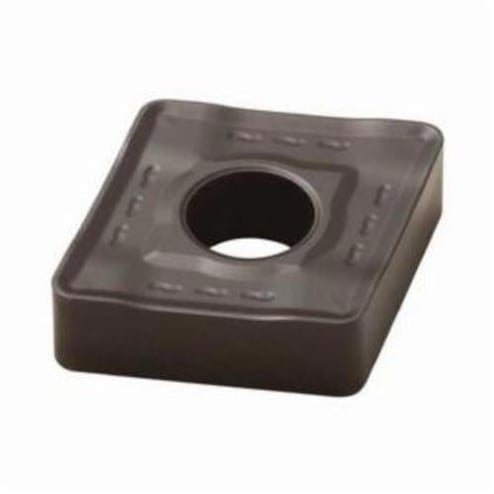

Seco 32501 Turning Insert, ANSI Code: CNMM543-RR6 TM4000, CNMM Insert, Material Grade: M, 160612 Insert, Diamond Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: TM4000


Description

Seco Turning Insert, CNMM Insert, 160612 Insert, Diamond, 8 mm Maximum Depth of Cut, 15.88 mm Inscribed Circle, 6.35 mm Thickness, 16 Seat, Negative Rake, RR6 Chipbreaker, 1.2 mm Corner Radius, 6.35 mm Hole Dia, Manufacturer's Grade: TM4000, ANSI Code: CNMM543-RR6 TM4000, ISO Code: CNMM160612-RR6 TM4000, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: M, For Use On: Stainless Steel

Specifications

ANSI Code CNMM543-RR6 TM4000
Chipbreaker RR6
Corner Radius 1.2 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Stainless Steel
Hole Diameter 6.35 mm
Included Angle 80 deg
Inscribed Circle 15.88 mm
Insert Size 160612
Insert Style CNMM
ISO Code CNMM160612-RR6 TM4000
Manufacturer's Grade TM4000
Material Carbide
Material Grade M
Maximum Depth of Cut 8 mm
Rake Negative
Relief Angle 0 deg
Seat Size 16
Shape Diamond
Thickness 6.35 mm

Country of Origin: Czech Republic

Application:
Roughing Applications
