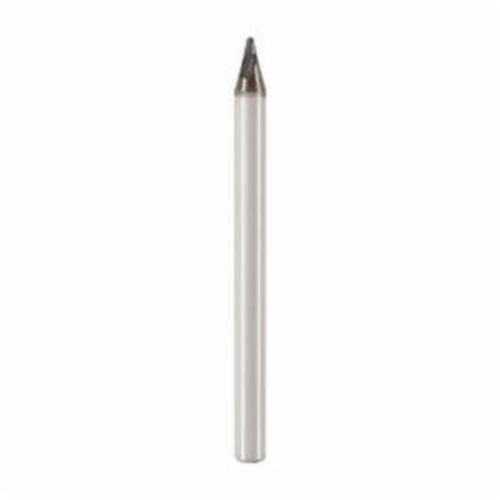

Seco JABRO® Mini 32228 JM113 Ball End Center Cutting Single End Mill, 0.039 in Dia Cutter, 0.029 in Length of Cut, 2 Flutes, 0.118 in Dia Shank, 1.574 in OAL, MEGA-64-T/PVD Coated


Description

Seco JABRO® Mini End Mill, Ball End Center Cutting Single End, Series: JM113, 0.039 in Cutter Dia, 1.574 in Overall Length, 0.029 in Length of Cut, 2 Flutes, Spiral Flute, 0.118 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: 113010-MEGA-64-T, ISO Code: 113010-MEGA-64-T, Solid Carbide, MEGA-64-T/PVD Coated

Micro-technology and miniaturisation are undergoing rapid developments. In order to be able to manufacture small products, Seco® has developed a wide range of miniature milling cutters, introducing the mini range. The Mini range caters for small diameters 0.1 - 2 mm, and in longer overhang lengths based on the typical dimensions up to 16 x D. They are the result of continious research into the optimum combinations of hard metal quality, milling cutter geometry and coatings in relation to the material to be machined.

Specifications

ANSI Code 113010-MEGA-64-T
Cutter Diameter 0.039 in
Cutting Direction Right Hand
Finish MEGA-64-T/PVD Coated
Flute Type Spiral
Helix Angle 30 deg
ISO Code 113010-MEGA-64-T
Length of Cut 0.029 in
Material Solid Carbide
Number of Flutes 2
Overall Length 1.574 in
Series JM113
Shank Diameter 0.118 in
Shank Type Cylindrical
Type Ball End Center Cutting Single End

Country of Origin: Netherlands

Application:
Radial Ramping Applications

Features

  • JABRO®-Mini - Micro machining technology
  • Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
  • MEGA-64-T is primarily used with miniature mills, it is commonly used in high speed applications on hardened steels
  • 90 deg cutting edge
  • 0.019 in corner radius
  • 1.102 in L minimum clamping
  • 30 deg axial rake
  • 4 deg radial rake
  • 0.2 in L neck
  • J - Tool shape
  • 2 teeth across centre cut
