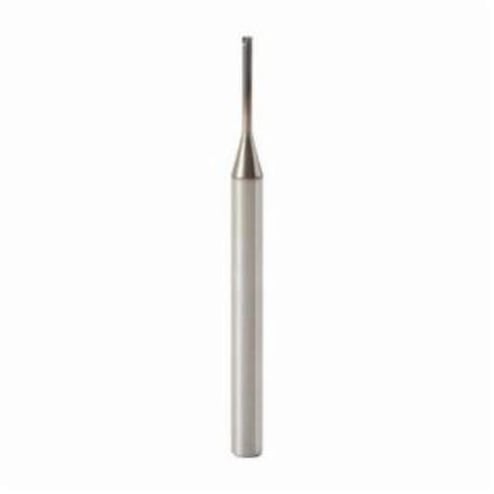

Seco JABRO® Mini 32102 Mini JM103 Center Cutting Single End Mill, 0.6 mm Dia Cutter, 0.05 mm Corner Radius, 0.3 mm Length of Cut, 2 Flutes, 3 mm Dia Shank, 40 mm OAL, MEGA-64-T/PVD Coated


Description

Seco JABRO® Mini End Mill, Center Cutting Single End, Series: Mini JM103, 0.6 mm Diameter Cutter, 0.05 mm Corner Radius, 40 mm Overall Length, 0.3 mm Length of Cut, 2 Flutes, Straight Flute, 3 mm Shank Diameter, Right Hand Cutting Direction, 0 deg Helix Angle, Cylindrical Shank, ANSI Code: 103ML006R005TN-MEGA-64-T, ISO Code: 103ML006R005TN-MEGA-64-T, Solid Carbide, MEGA-64-T/PVD Coated

Micro-technology and miniaturization are undergoing rapid developments. In order to be able to manufacture small products, Seco has developed a wide range of miniature milling cutters, introducing the mini range. The Mini range caters for small diameters 0.1 to 2 mm and in longer overhang lengths based on the typical dimensions up to 16XD. They are the result of continuous research into the optimum combinations of hard metal quality, milling cutter geometry and coatings in relation to the material to be machined.

Specifications

ANSI Code 103ML006R005TN-MEGA-64-T
Corner Radius 0.05 mm
Cutter Diameter 0.6 mm
Cutting Direction Right Hand
Finish MEGA-64-T/PVD Coated
Flute Type Straight
Helix Angle 0 deg
ISO Code 103ML006R005TN-MEGA-64-T
Length of Cut 0.3 mm
Material Solid Carbide
Number of Flutes 2
Overall Length 40 mm
Series Mini JM103
Shank Diameter 3 mm
Shank Type Cylindrical
Type Center Cutting Single End

Country of Origin: Netherlands

Application:
Micro Machining, Radial and Ramping
