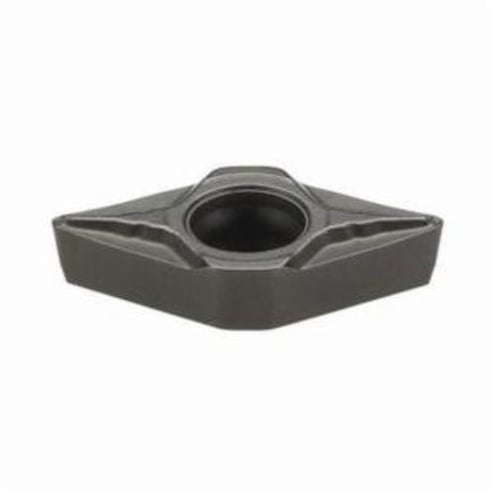

Seco 31534 Turning Insert, ANSI Code: DCMT32.51-F1 TM2000, DCMT Insert, Material Grade: M, 11T304 Insert, Diamond Shape, 11 Seat, Positive Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: TM2000
Seco 31534 Turning Insert, ANSI Code: DCMT32.51-F1 TM2000, DCMT Insert, Material Grade: M, 11T304 Insert, Diamond Shape, 11 Seat, Positive Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: TM2000
SKU: SECO 31534
Manufacturer Part Number: 31534
Brand: Seco
Description
Specifications
| ANSI Code | DCMT32.51-F1 TM2000 |
| Chipbreaker | F1 |
| Corner Radius | 0.4 mm |
| Cutting Direction | Neutral |
| Finish | CVD-TiCN+Al2O3 Coated |
| For Use On | Stainless Steel |
| Hole Diameter | 4.5 mm |
| Included Angle | 55 deg |
| Inscribed Circle | 9.5 mm |
| Insert Size | 11T304 |
| Insert Style | DCMT |
| ISO Code | DCMT11T304-F1 TM2000 |
| Manufacturer's Grade | TM2000 |
| Material | Carbide |
| Material Grade | M |
| Maximum Depth of Cut | 3.75 mm |
| Rake | Positive |
| Relief Angle | 7 deg |
| Seat Size | 11 |
| Shape | Diamond |
| Thickness | 3.97 mm |
Country of Origin: Sweden
