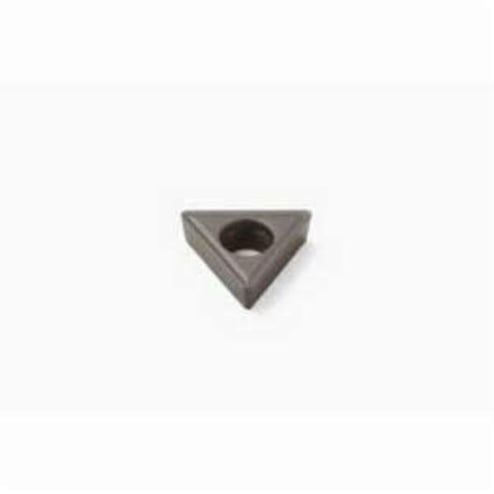

Seco 31476 Turning Insert, ANSI Code: TCMT32.52-F2 TM4000, TCMT Insert, Material Grade: M, 16T308 Insert, Triangular Shape, 16 Seat, Positive Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: TM4000


Description

Seco Turning Insert, TCMT Insert, 16T308 Insert, Triangular, 3.75 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.97 mm Thickness, 16.5 mm Length, 16 Seat, Positive Rake, F2 Chipbreaker, 0.8 mm Corner Radius, 4.5 mm Hole Dia, Manufacturer's Grade: TM4000, ANSI Code: TCMT32.52-F2 TM4000, ISO Code: TCMT16T308-F2 TM4000, 60 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: M, For Use On: Stainless Steel

Specifications

ANSI Code TCMT32.52-F2 TM4000
Chipbreaker F2
Corner Radius 0.8 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Stainless Steel
Hole Diameter 4.5 mm
Included Angle 60 deg
Inscribed Circle 9.52 mm
Insert Size 16T308
Insert Style TCMT
ISO Code TCMT16T308-F2 TM4000
Length 16.5 mm
Manufacturer's Grade TM4000
Material Carbide
Material Grade M
Maximum Depth of Cut 3.75 mm
Rake Positive
Relief Angle 7 deg
Seat Size 16
Shape Triangular
Thickness 3.97 mm

Country of Origin: Czech Republic

Application:
Finishing Applications
