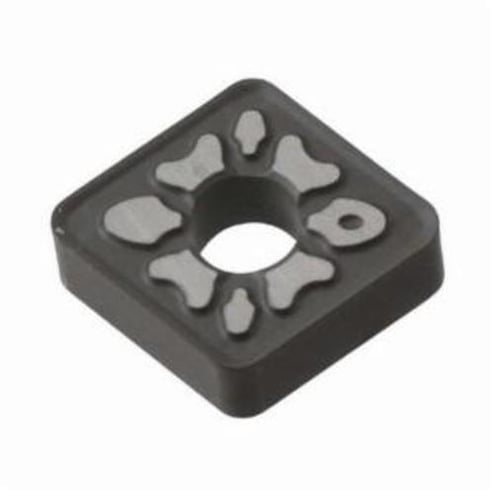

Seco 31425 Turning Insert, ANSI Code: CNMG431-MF4 TM4000, CNMG Insert, Material Grade: M, 120404 Insert, Diamond Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: TM4000


Description

Seco Turning Insert, CNMG Insert, 120404 Insert, Diamond, 5.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Negative Rake, MF4 Chipbreaker, 0.4 mm Corner Radius, 5.15 mm Hole Dia, Manufacturer's Grade: TM4000, ANSI Code: CNMG431-MF4 TM4000, ISO Code: CNMG120404-MF4 TM4000, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: M, For Use On: Stainless Steel

Specifications

ANSI Code CNMG431-MF4 TM4000
Chipbreaker MF4
Corner Radius 0.4 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Stainless Steel
Hole Diameter 5.15 mm
Included Angle 80 deg
Inscribed Circle 12.7 mm
Insert Size 120404
Insert Style CNMG
ISO Code CNMG120404-MF4 TM4000
Manufacturer's Grade TM4000
Material Carbide
Material Grade M
Maximum Depth of Cut 5.25 mm
Rake Negative
Relief Angle 0 deg
Seat Size 12
Shape Diamond
Thickness 4.76 mm

Country of Origin: India

Application:
Medium and Finishing
