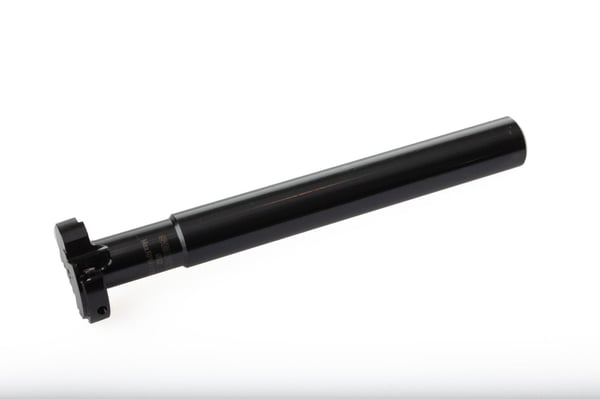

Seco 02541821 R335.18 Arbor Milling Cutter, Shank Connection, 1.248 in Dia Cutting x 0.312 in W Cutting, Right Cutting, LNK 05 Insert, 0.354 in Max Depth of Cu


Description

Seco, 02541821, Milling Cutter, Arbor, Series: R335.18, 1.248 in Diameter Cutting, 5.511 in Overall Length, 0.312 in Cutting Width, LNK 05 Insert, Insert Compatibility: LNKT 050404PPN4-E05/ LNKT 050404PPTN4-M06/ LNKT 050408PPN4-E05/ LNKT 050408PPTN4-M06/ LNKT 050416PPTN4-M06/ LNKT 050420PPTN4-M06/ LNKT 050424PPTN2-M06/ LNKT 050431PPTL1-M06/ LNKT 050431PPTR1-M06/ LNKW 050404PPN4-MD07/ LNKW 050408PPN4-MD07, 0.624 in Shank Diameter, Cylindrical Shank, 4.212 in Shank Length, Right Cutting Direction, Shank Connection, 0.354 in Maximum Depth of Cut

Specifications

Connection Type Shank
Cutting Diameter 1.248 in
Cutting Direction Right
Cutting Width 0.312 in
Insert Compatibility LNKT 050404PPN4-E05/ LNKT 050404PPTN4-M06/ LNKT 050408PPN4-E05/ LNKT 050408PPTN4-M06/ LNKT 050416PPTN4-M06/ LNKT 050420PPTN4-M06/ LNKT 050424PPTN2-M06/ LNKT 050431PPTL1-M06/ LNKT 050431PPTR1-M06/ LNKW 050404PPN4-MD07/ LNKW 050408PPN4-MD07
Insert Style LNK 05
Maximum Depth of Cut 0.354 in
Overall Length 5.511 in
Series R335.18
Shank Diameter 0.624 in
Shank Length 4.212 in
Shank Type Cylindrical
Type Arbor

Country of Origin: France

Application:
For tackles any challenges brought by disc milling applications

Features

  • Developed with extensive research to ensure they meet the needs to today's materials and machining processes, tackles any challenges brought by disc milling applications
