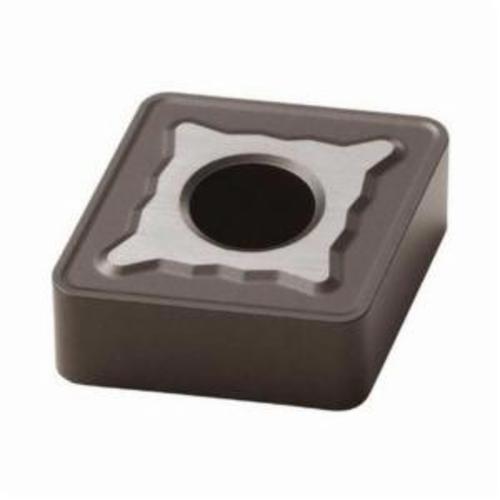

Seco 27897 Turning Insert, ANSI Code: CNMG544-MR7 TP2500, CNMG Insert, Material Grade: P, 160616 Insert, Diamond Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP2500


Description

Seco Turning Insert, CNMG Insert, 160616 Insert, Diamond, 8 mm Maximum Depth of Cut, 15.88 mm Inscribed Circle, 6.35 mm Thickness, 16 Seat, Negative Rake, MR7 Chipbreaker, 1.6 mm Corner Radius, 6.35 mm Hole Dia, Manufacturer's Grade: TP2500, ANSI Code: CNMG544-MR7 TP2500, ISO Code: CNMG160616-MR7 TP2500, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

Specifications

ANSI Code CNMG544-MR7 TP2500
Chipbreaker MR7
Corner Radius 1.6 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Steel
Hole Diameter 6.35 mm
Included Angle 80 deg
Inscribed Circle 15.88 mm
Insert Size 160616
Insert Style CNMG
ISO Code CNMG160616-MR7 TP2500
Manufacturer's Grade TP2500
Material Carbide
Material Grade P
Maximum Depth of Cut 8 mm
Rake Negative
Relief Angle 0 deg
Seat Size 16
Shape Diamond
Thickness 6.35 mm

Country of Origin: Czech Republic

Application:
Medium and Roughing
