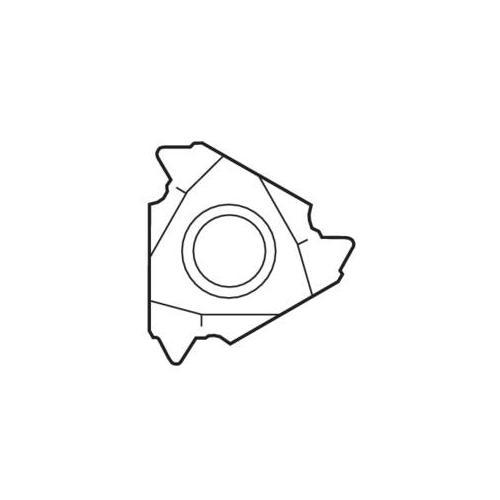

Seco 74027763 22NR Laydown Threading Insert, 4 TPI, Internal Thread, Right Cutting, Manufacturer's Grade: H15


Description

Seco, 74027763, Threading Insert, Laydown, Series: 22NR, Internal Thread, 4 TPI Threads per Inch, 0.5 in Inscribed Circle, 0.185 in Thickness, 0.866 in Length, 0.038 in Corner Radius, 60 deg Included Angle, Manufacturer's Grade: H15, Right Cutting Direction

Specifications

Corner Radius 0.038 in
Cutting Direction Right
Included Angle 60 deg
Inscribed Circle 0.5 in
Length 0.866 in
Manufacturer's Grade H15
Series 22NR
Thickness 0.185 in
Thread Type Internal
Threads per Inch 4 TPI
Type Laydown

Country of Origin: India

Standards and Approvals: PROP65

Application:
For a large majority of common thread turning applications

Features

  • Eliminates the need for secondary grinding or honing operations, which makes these tools a highly economical choice
  • Features the CP500 grade that features a highly wear resistant PVD coating to provide dependable machining for a large majority of common thread turning applications
