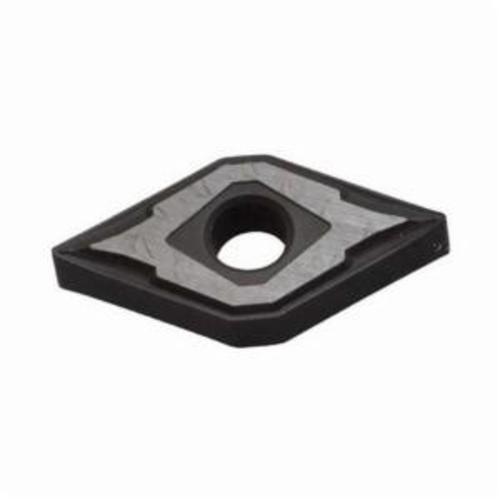

Seco 27682 Turning Insert, ANSI Code: DNMG443-MF2 TP2500, DNMG Insert, Material Grade: P, 150612 Insert, Diamond Shape, 15 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP2500


Description

Seco Turning Insert, DNMG Insert, 150612 Insert, Diamond Shape, 5.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 6.35 mm Thickness, 15 Seat, Negative/Positive Rake, MF2 Chipbreaker, 1.2 mm Corner Radius, 5.15 mm Diameter Hole, Manufacturer's Grade: TP2500, ANSI Code: DNMG443-MF2 TP2500, ISO Code: DNMG150612-MF2 TP2500, 55 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

Specifications

ANSI Code DNMG443-MF2 TP2500
Chipbreaker MF2
Corner Radius 1.2 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Steel
Hole Diameter 5.15 mm
Included Angle 55 deg
Inscribed Circle 12.7 mm
Insert Size 150612
Insert Style DNMG
ISO Code DNMG150612-MF2 TP2500
Manufacturer's Grade TP2500
Material Carbide
Material Grade P
Maximum Depth of Cut 5.25 mm
Rake Negative/Positive
Relief Angle 0 deg
Seat Size 15
Shape Diamond
Thickness 6.35 mm

Country of Origin: India

Application:
Medium and Finishing
