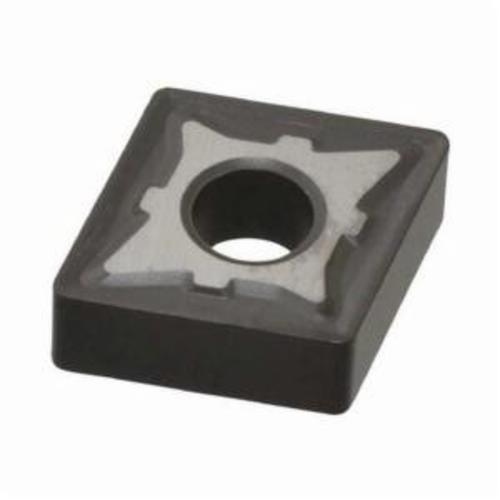

Seco 27605 Turning Insert, ANSI Code: CNMG643-M5 TP2500, CNMG Insert, Material Grade: P, 190612 Insert, Diamond Shape, 19 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP2500


Description

Seco Turning Insert, CNMG Insert, 190612 Insert, Diamond Shape, 12 mm Maximum Depth of Cut, 19.05 mm Inscribed Circle, 6.35 mm Thickness, 19 Seat, Negative/Positive Rake, M5 Chipbreaker, 1.2 mm Corner Radius, 7.92 mm Diameter Hole, Manufacturer's Grade: TP2500, ANSI Code: CNMG643-M5 TP2500, ISO Code: CNMG190612-M5 TP2500, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

Specifications

ANSI Code CNMG643-M5 TP2500
Chipbreaker M5
Corner Radius 1.2 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Steel
Hole Diameter 7.92 mm
Included Angle 80 deg
Inscribed Circle 19.05 mm
Insert Size 190612
Insert Style CNMG
ISO Code CNMG190612-M5 TP2500
Manufacturer's Grade TP2500
Material Carbide
Material Grade P
Maximum Depth of Cut 12 mm
Rake Negative/Positive
Relief Angle 0 deg
Seat Size 19
Shape Diamond
Thickness 6.35 mm

Country of Origin: India

Application:
Medium Applications
