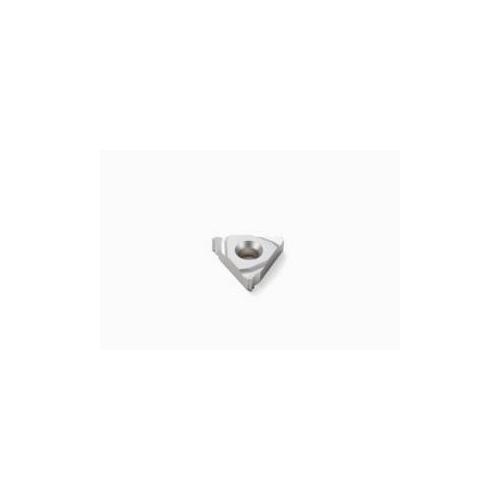

Seco 74027536 16NR Laydown Threading Insert, 16NR Insert, Internal Thread, ISO Thread, 0.118 in Pitch, Right Cutting, Manufacturer's Grade: H15


Description

Seco, 74027536, Threading Insert, Laydown, Series: 16NR, 16NR Insert, Internal Thread, ISO Thread Standard, 0.118 in Pitch, 0.375 in Inscribed Circle, 0.137 in Thickness, 0.65 in Length, 0.008 in Corner Radius, 60 deg Included Angle, Manufacturer's Grade: H15, Right Cutting Direction, Carbide

Specifications

Corner Radius 0.008 in
Cutting Direction Right
Included Angle 60 deg
Inscribed Circle 0.375 in
Insert Style 16NR
Length 0.65 in
Manufacturer's Grade H15
Material Carbide
Pitch 0.118 in
Series 16NR
Thickness 0.137 in
Thread Standard ISO
Thread Type Internal
Type Laydown

Country of Origin: India

Standards and Approvals: PROP65

Application:
For a large majority of common thread turning applications

Features

  • Eliminates the need for secondary grinding or honing operations, which makes these tools a highly economical choice
  • Features the CP500 grade that features a highly wear resistant PVD coating to provide dependable machining for a large majority of common thread turning applications
