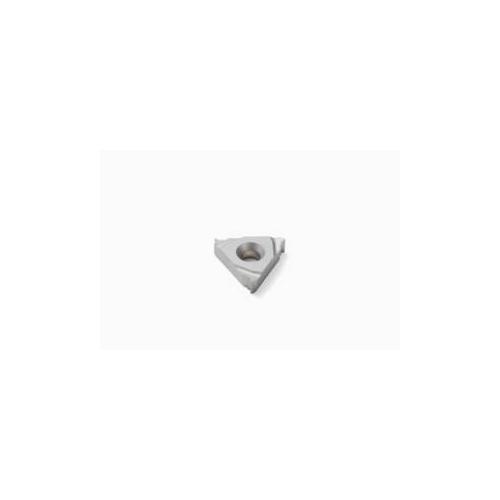

Seco 74027526 16ER Laydown Threading Insert, 16ER Insert, External Thread, ISO Thread, 0.079 in Pitch, Right Cutting, Manufacturer's Grade: H15


Description

Seco, 74027526, Threading Insert, Laydown, Series: 16ER, 16ER Insert, External Thread, ISO Thread Standard, 0.079 in Pitch, 0.375 in Inscribed Circle, 0.137 in Thickness, 0.65 in Length, 0.011 in Corner Radius, 60 deg Included Angle, Manufacturer's Grade: H15, Right Cutting Direction, Carbide

Specifications

Corner Radius 0.011 in
Cutting Direction Right
Included Angle 60 deg
Inscribed Circle 0.375 in
Insert Style 16ER
Length 0.65 in
Manufacturer's Grade H15
Material Carbide
Pitch 0.079 in
Series 16ER
Thickness 0.137 in
Thread Standard ISO
Thread Type External
Type Laydown

Country of Origin: India

Standards and Approvals: PROP65

Application:
For a large majority of common thread turning applications

Features

  • Eliminates the need for secondary grinding or honing operations, which makes these tools a highly economical choice
  • Features the CP500 grade that features a highly wear resistant PVD coating to provide dependable machining for a large majority of common thread turning applications
