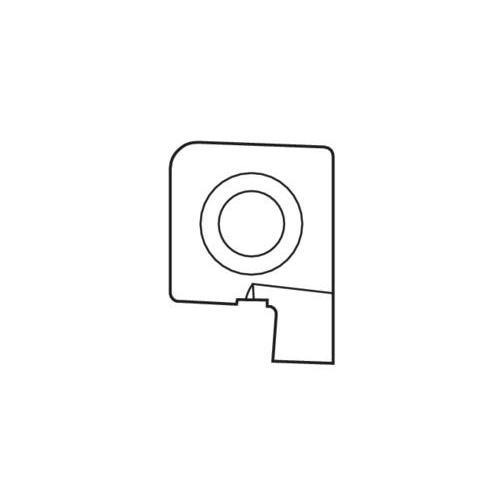

Seco 00026837 9NL Grooving Insert, 9NL Insert, 9165 Insert, Left Hand Cutting, 0.065 in W Cutting, Manufacturer's Grade: CP500, TiAlN/TiN, Micrograin Material Grade


Description

Seco, 00026837, Grooving Insert, Series: 9NL, 9NL Insert, 9165 Insert, 0.065 in Cutting Width, 0.065 in Maximum Depth of Cut, FG Chipbreaker, 0.00 in Corner Radius, 12.7 in Width, 0.354 in Length, Manufacturer's Grade: CP500, Left Hand Cutting Direction, Carbide, TiAlN/TiN, Material Grade: Micrograin

Specifications

Chipbreaker FG
Corner Radius 0.00 in
Cutting Direction Left Hand
Cutting Width 0.065 in
Finish TiAlN/TiN
Insert Size 9165
Insert Style 9NL
Length 0.354 in
Manufacturer's Grade CP500
Material Carbide
Material Grade Micrograin
Maximum Depth of Cut 0.065 in
Series 9NL
Width 12.7 in

Includes: Inserts

Country of Origin: India

Standards and Approvals: PROP65

Application:
Especially suitable in intermittent cuts

Features

  • Intended for radial and axial as well as external and internal precision grooving
  • The range of grooving inserts includes inserts for most groove profiles, such as circlip profiles, O-ring profiles, thread undercut and radius grooves
  • Tough micrograin grade intended for finishing to medium-roughing of stainless steels but with wide applicability for example in steels and aluminium alloys
  • Especially suitable in intermittent cuts
