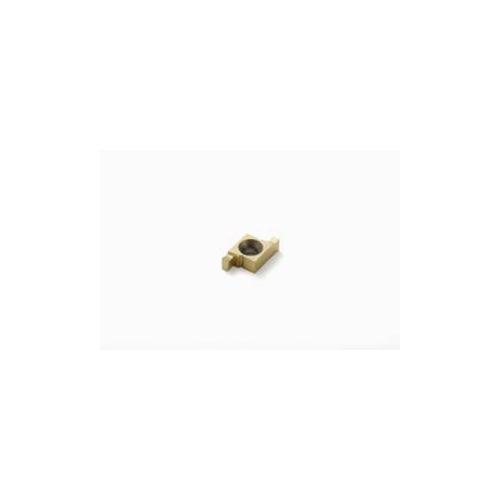

Seco 00026769 20NR Grooving Insert, 20NR Insert, 2050 Insert, Neutral Cutting, 0.197 in W Cutting, Manufacturer's Grade: CP500, TiAlN/TiN, Micrograin Material Grade


Description

Seco, 00026769, Grooving Insert, Series: 20NR, 20NR Insert, 2050 Insert, 0.197 in Cutting Width, 0.197 in Maximum Depth of Cut, FG Chipbreaker, 0.00 in Corner Radius, 12.7 in Width, 0.787 in Length, Manufacturer's Grade: CP500, Neutral Cutting Direction, Carbide, TiAlN/TiN, Material Grade: Micrograin

Specifications

Chipbreaker FG
Corner Radius 0.00 in
Cutting Direction Neutral
Cutting Width 0.197 in
Finish TiAlN/TiN
Insert Size 2050
Insert Style 20NR
Length 0.787 in
Manufacturer's Grade CP500
Material Carbide
Material Grade Micrograin
Maximum Depth of Cut 0.197 in
Series 20NR
Width 12.7 in

Includes: Inserts

Country of Origin: India

Standards and Approvals: PROP65

Application:
Especially suitable in intermittent cuts

Features

  • Intended for radial and axial as well as external and internal precision grooving
  • The range of grooving inserts includes inserts for most groove profiles, such as circlip profiles, O-ring profiles, thread undercut and radius grooves
  • Tough micrograin grade intended for finishing to medium-roughing of stainless steels but with wide applicability for example in steels and aluminium alloys
  • Especially suitable in intermittent cuts
