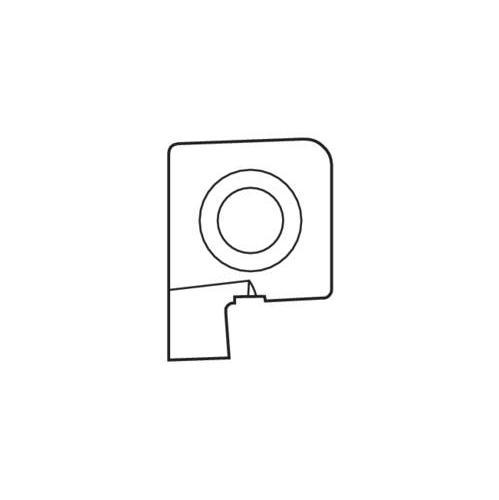

Seco 00026738 9NR Grooving Insert, 9NR Insert, 9265 Insert, Right Hand Cutting, 0.104 in W Cutting, Manufacturer's Grade: CP500, TiAlN/TiN, Micrograin Material Grade


Description

Seco, 00026738, Grooving Insert, Series: 9NR, 9NR Insert, 9265 Insert, 0.104 in Cutting Width, 0.104 in Maximum Depth of Cut, FG Chipbreaker, 0.00 in Corner Radius, 0.25 in Width, 0.354 in Length, Manufacturer's Grade: CP500, Right Hand Cutting Direction, Carbide, TiAlN/TiN, Material Grade: Micrograin

Specifications

Chipbreaker FG
Corner Radius 0.00 in
Cutting Direction Right Hand
Cutting Width 0.104 in
Finish TiAlN/TiN
Insert Size 9265
Insert Style 9NR
Length 0.354 in
Manufacturer's Grade CP500
Material Carbide
Material Grade Micrograin
Maximum Depth of Cut 0.104 in
Series 9NR
Width 0.25 in

Includes: Inserts

Country of Origin: India

Standards and Approvals: PROP65

Application:
Especially suitable in intermittent cuts

Features

  • Intended for radial and axial as well as external and internal precision grooving
  • The range of grooving inserts includes inserts for most groove profiles, such as circlip profiles, O-ring profiles, thread undercut and radius grooves
  • Tough micrograin grade intended for finishing to medium-roughing of stainless steels but with wide applicability for example in steels and aluminium alloys
  • Especially suitable in intermittent cuts
