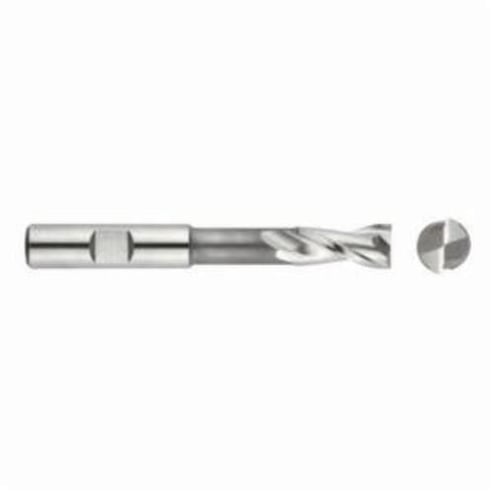

Seco Niagara Cutter N25080 SEL250 Center Cutting Medium Length Single End Square End End Mill, 1/4 in Dia Cutter, 5/8 in Length of Cut, 2 Flutes, 3/8 in Dia Shank, 3-1/16 in OAL, TiN Coated


Description

Seco Niagara Cutter End Mill, Center Cutting Medium Length Single End Square End, Series: SEL250, 1/4 in Diameter Cutter, 3-1/16 in Overall Length, 5/8 in Length of Cut, 2 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, ANSI Code: SEL250-0.250-G3-S.3-Z2, ISO Code: SEL250.250G3S.3Z2, HSS, TiN Coated

Specifications

ANSI Code SEL250-0.250-G3-S.3-Z2
Cutter Diameter 1/4 in
Cutting Direction Right Hand
Finish TiN Coated
Flute Type Spiral
Helix Angle 30 deg
ISO Code SEL250.250G3S.3Z2
Length of Cut 5/8 in
Material HSS
Number of Flutes 2
Overall Length 3-1/16 in
Series SEL250
Shank Diameter 3/8 in
Shank Type Weldon Flat
Type Center Cutting Medium Length Single End Square End

Country of Origin: United States

Application:
For slotting and pocketing in all materials

Features

  • High speed steel (HSS) provides good wear resistance, it is commonly used for general purpose applications on both ferrous and non-ferrous materials
  • Titanium nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials and the heat and hardness resistance allows the tool to run at higher speeds than uncoated tools
  • 90 deg cutting edge
  • 1.562 in L minimum clamping
  • 30 deg axial rake
  • 10 deg radial rake
  • 1-1/2 in L reach
  • 0.2 in Dia neck
  • Square nose end mills create sharp, unrounded cuts
  • Extended-reach neck style provides access to recessed areas of the workpiece
  • Center cutting design allows the end mill to plunge into material like a drill bit while also performing conventional surface milling
  • G - Step Neck tool shape
