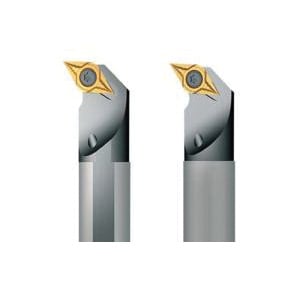

Seco 02516600 Indexable Turning Tool Holder, ANSI Code: A25S-SDUCL11-R, A-SDUC Tool Holder, DC..11T3.. Insert, Left Hand Cutting, 25 mm Cylindrical Shank, 93 deg Lead Angle, Neutral Rake, 250 mm OAL


Description

Seco Indexable Turning Tool Holder, A-SDUC Tool Holder, 250 mm Overall Length, Cylindrical Shank, 25 mm Shank, Insert Compatibility: DC..11T3.., Left Hand Cutting, 9.5299 mm Inscribed Circle, 93 deg Lead Angle, 40 mm Head Length, ANSI Code: A25S-SDUCL11-R, Neutral Rake, Steel

This wide offering of easily applicable shank and boring bar toolholders adds another level of reliability and productivity to lathe machining. The range of ISO and ANSI toolholders accommodates a comprehensive range of insert types, shapes and sizes, also allowing choice of several leading clamping methods.

Specifications

ANSI Code A25S-SDUCL11-R
Cutting Direction Left Hand
Head Length 40 mm
Inscribed Circle 9.5299 mm
Insert Compatibility DC..11T3..
Lead Angle 93 deg
Material Steel
Overall Length 250 mm
Rake Neutral
Shank Size 25 mm
Shank Type Cylindrical
Tool Holder Style A-SDUC

Country of Origin: Italy
