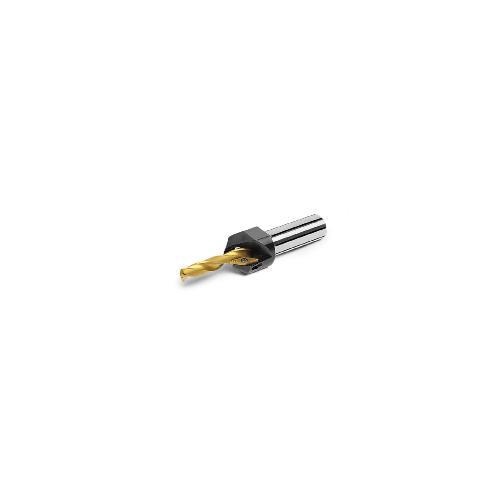

Seco 02510275 Combination Countersink Drill, Shank Connection, 0.1575 in Dia Min Drill, SD200 Insert


Description

Seco, 02510275, Countersink Drill, Combination, Shank Connection, 0.1575 in Diameter Minimum Drill, 12 mm Diameter Body Shank, SD200 Insert, 45 deg Chamfer Angle, 66.0 mm Overall Length, Screw Insert Holding Method, 1.599 in Shank Length

The Carbide drill chamfer module SD200-C45-6R1 features a cutting diameter range from 4.0 mm to 6.1 mm with a maximum cutting depth of 2.8 mm. It has a tool cutting edge angle of 45 degrees and a shank diameter of 12 mm. This module is designed specifically for chamfering operations within these dimensional limits. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

Specifications

Body Shank Diameter 12 mm
Chamfer Angle 45 deg
Connection Type Shank
Insert Holding Method Screw
Insert Style SD200
Minimum Drill Diameter 0.1575 in
Overall Length 66.0 mm
Shank Length 1.599 in
Type Combination

Country of Origin: Sweden

Standards and Approvals: PROP65

Features

  • Modern carbide tools offer remarkable performance by utilizing the best combinations of carbide substrates with high wear-resistant coatings
  • Optimized cutting geometry
  • Controlled edge preparation
