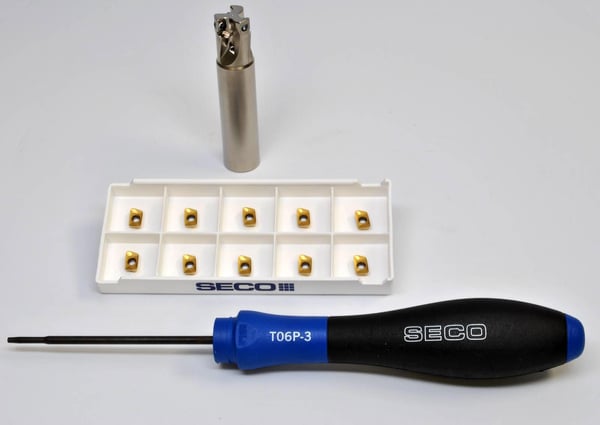

Seco 02504119 Indexable Square-Shoulder End Mill Kit, 0.500 in Dia Cutting, Cylindrical Shank, 90 deg Lead Angle, 0.197 in Max Depth of Cut


Description

Seco, 02504119, Square-Shoulder End Mill Kit, Indexable, 0.500 in Diameter Cutting, 2.362 in Overall Length, 0.197 in Maximum Depth of Cut, 3 Inserts, Insert Compatibility: XO.X 0602, 1/2 in Shank Diameter, Cylindrical Shank, 1.654 in Shank Length, 90 deg Lead Angle, Through Coolant (Yes/No): Yes

Specifications

Cutting Diameter 0.500 in
Insert Compatibility XO.X 0602
Lead Angle 90 deg
Maximum Depth of Cut 0.197 in
Number of Inserts 3
Overall Length 2.362 in
Shank Diameter 1/2 in
Shank Length 1.654 in
Shank Type Cylindrical
Through Coolant (Yes/No) Yes
Type Indexable

Country of Origin: United States

Standards and Approvals: PROP65

Features

  • Coated, pre-hardened cutter body with two different pitch configurations for meeting tight tolerances and providing high reliability in a broad range of workpiece materials
  • Not only does this coated/hardened surface protect the tool from wear, it also prevents chips from welding on the cutter body
