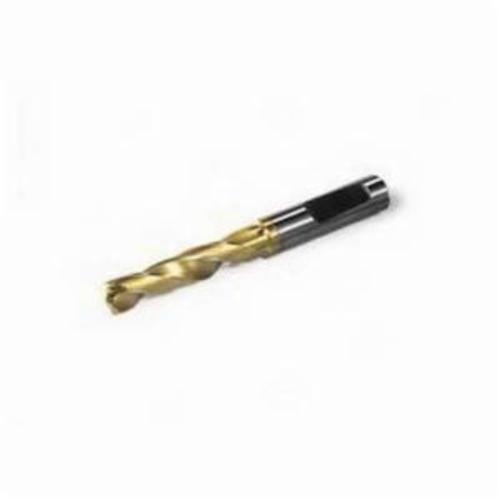

Seco Feedmax™ 02500414 SD203A Shank Drill, 10.4 mm Drill - Metric, 0.4094 in Drill - Decimal Inch, Solid Carbide, PVD TiAlN+TiN Coated


Description

Seco Feedmax™ Shank Drill, Series: SD203A, Metric/Imperial, 10.4 mm Drill - Metric, 0.4094 in Drill - Decimal Inch, 107 mm Overall Length, 3XD Cutting Depth, 2 Flutes, Spiral Flute, 55 mm Flute Length, 14 mm Dia x 45 mm L Shank, Whistle Notch Shank, 140 deg Point, Self-Centering Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, Solid Carbide, PVD TiAlN+TiN Coated, Applicable Materials: Cast Iron, Non-Ferrous Materials and Plastics

Seco Feedmax™ is our latest generation of high performance solid carbide drills. They offer a unique combination of state-of-the-art carbide, coating and geometry technology.

Specifications

Applicable Materials Cast Iron, Non-Ferrous Materials and Plastics
Cutting Depth 3XD
Cutting Direction Right Hand
Cutting Edge Material Solid Carbide
Drill Diameter Measurement System Metric/Imperial
Drill Size - Decimal Inch 0.4094 in
Drill Size - Metric 10.4 mm
Finish PVD TiAlN+TiN Coated
Flute Length 55 mm
Flute Type Spiral
Material Solid Carbide
Number of Flutes 2
Overall Length 107 mm
Point Angle 140 deg
Point Type Self-Centering
Series SD203A
Shank Size 14 mm Dia x 45 mm L
Shank Type Whistle Notch

Country of Origin: United States

Standards and Approvals: DIN 6537B

Application:
For hole making applications

Features

  • Chamfer drills combine drilling and chamfering into a single process to maximize efficiency
  • These drills minimize cost per holes through a design that maximizes productivity
  • The self-centering geometry provides high hole quality using a 45 deg (90 deg included angle) chamfer angle
  • A special TiAlN coating provides high hot hardness, which combines with a strong cutting edge to ensure long and predictable tool life
